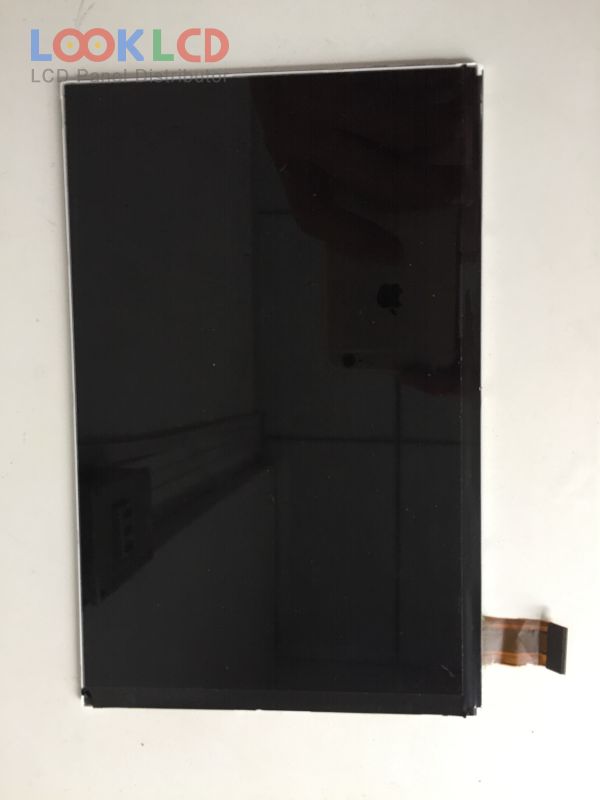

| Numéro d'article | VVX07H005A90 |
| Marque | Panasonic |
| Taille | 7.0 |
| application | PAD |
| Résolution | 800×1280 |
| Composition | LCM |
| Luminosité | 450 |
| CR | 1000:1 |
| Couleurs | 262K |
| Rétroéclairage | WLED |
| Interface | MIPI |
| marque de panneau | Panasonic |
| modèle de panneau | VVX07H005A90 |
| type de panneau | a-Si TFT-LCD , LCM |
| taille du panneau | 7.0 inch |
| résolution | 800(RGB)×1280 , WXGA |
| mode d'affichage | IPS, Normally Black, Transmissive |
| zone active | 94.2×150.72 mm |
| contour | 104.32×161.67×3.8 mm |
| surface | Hard coating |
| luminosité | 450 cd/m² (Typ.) |
| Rapport de contraste | 1000:1 (Typ.) |
| couleurs d'affichage | 262K (6-bit), CIE193160% |
| Temps de réponse | 30 (Max.)(Tr+Td) |
| angle de vue | 80/80/80/80 (Min.)(CR≥100)(L/R/U/D) |
| fréquence | 60Hz |
| type de lampe | 5S5PWLEDWithout Driver |
| interface de signaux | MIPI (4 data lanes), 34 pins |
| tension d'entrée | 1.8/3.3V (Typ.)(VCC/VDD) |
| 70WVW5A | SII | 7.0 | 800×480 |
| AT070TN83 V.1 | Innolux | 7.0 | 800×480 |
| G070VVN01.0 | AUO | 7.0 | 800×480 |
| LQ070Y5DG01 | SHARP | 7.0 | 800×480 |
| N070ICG-LD3 | Innolux | 7.0 | 1280×800 |
| N070LGE-L41 | Innolux | 7.0 | 1024×600 |
| PW070XU3 | E Ink | 7.0 | 480×234 |
| VVX07H005A00 | Panasonic | 7.0 | 800×1280 |
| VVX07H005A10 | Panasonic | 7.0 | 800×1280 |
| VVX07H005A90 | Panasonic | 7.0 | 800×1280 |
| B101UAN01.9 | AUO | 10.1 | 1920×1200 |
| EJ080NA-04A | Innolux | 8.0 | 1024×768 |
| HJ101IA-01I | Innolux | 10.1 | 1280×800 |
| HJ101NA-02A | Innolux | 10.1 | 1280×800 |
| HT12X21-351 | HYDIS | 12.1 | 1024×768 |
| HV121P01-101 | HYDIS | 12.1 | 1400×1050 |
| LP094WX1-SLA1 | LG Display | 9.4 | 1280×800 |
| LP097X02-SLQA | LG Display | 9.7 | 1024×768 |
| LQ070S1DW01 | SHARP | 7.0 | 600×800 |
| LQ097L1JY02Z | SHARP | 9.7 | 2048×1536 |
