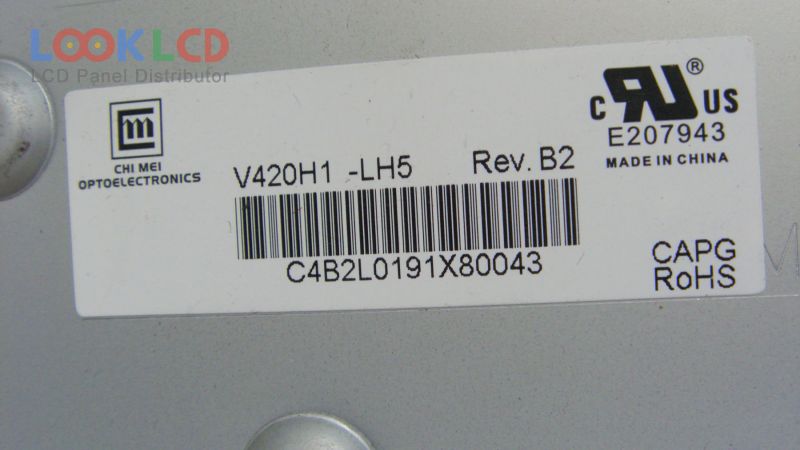

| Numéro d'article | V420H1-LH5 |
| Marque | Innolux |
| Taille | 42 |
| application | LCTV |
| Résolution | 1920×1080 |
| Composition | LCM |
| Luminosité | 500 |
| CR | 4000:1 |
| Couleurs | 16.7M/1.07B |
| Rétroéclairage | CCFL |
| Interface | LVDS |
| marque de panneau | CMO |
| modèle de panneau | V420H1-LH5 |
| type de panneau | a-Si TFT-LCD , LCM |
| taille du panneau | 42 inch |
| résolution | 1920(RGB)×1080 , FHD |
| mode d'affichage | Super MVA, Normally Black, Transmissive |
| zone active | 930.24×523.26 mm |
| contour | 983×576 mm |
| surface | Antiglare (Haze 11%), Hard coating (3H) |
| luminosité | 500 cd/m² (Typ.) |
| Rapport de contraste | 4000:1 (Typ.) |
| couleurs d'affichage | 16.7M/1.07B (8-bit / 8-bit + Hi-FRC), CIE193172% |
| Temps de réponse | 4 (Typ.)(G to G) |
| angle de vue | 88/88/88/88 (Typ.)(CR≥20)(L/R/U/D) |
| fréquence | 120Hz (60Hz Input) |
| type de lampe | 12 pcsCCFLEmbedded (Inverter) |
| interface de signaux | LVDS (2 ch, 10-bit), 51 pins |
| tension d'entrée | 12.0V (Typ.) |
