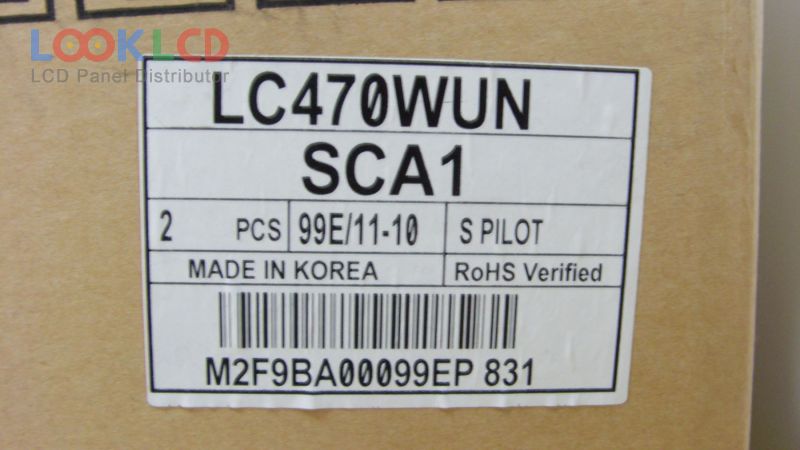

| Numéro d'article | LC470WUN-SCA1 |
| Marque | LG Display |
| Taille | 47 |
| application | LCTV |
| Résolution | 1920×1080 |
| Composition | LCM |
| Luminosité | 500 |
| CR | 1450:1 |
| Couleurs | 16.7M/1.06B |
| Rétroéclairage | EEFL |
| Interface | LVDS |
| marque de panneau | LG Display |
| modèle de panneau | LC470WUN-SCA1 |
| type de panneau | a-Si TFT-LCD , LCM |
| taille du panneau | 47 inch |
| résolution | 1920(RGB)×1080 , FHD |
| mode d'affichage | S-IPS, Normally Black, Transmissive |
| zone active | 1039.68×584.82 mm |
| contour | 1096×640 mm |
| surface | Antiglare (Haze 10%), Hard coating (3H) |
| luminosité | 500 cd/m² (Typ.) |
| Rapport de contraste | 1450:1 (Typ.) |
| couleurs d'affichage | 16.7M/1.06B (8-bit / 8-bit + Dithering), CIE193172% |
| Temps de réponse | 5 (Typ.)(G to G) |
| angle de vue | 89/89/89/89 (Min.)(CR≥10)(L/R/U/D) |
| fréquence | 60Hz |
| type de lampe | EEFLEmbedded (Inverter) |
| interface de signaux | LVDS (2 ch, 8/10-bit), 51 pins |
| tension d'entrée | 12.0V (Typ.) |
