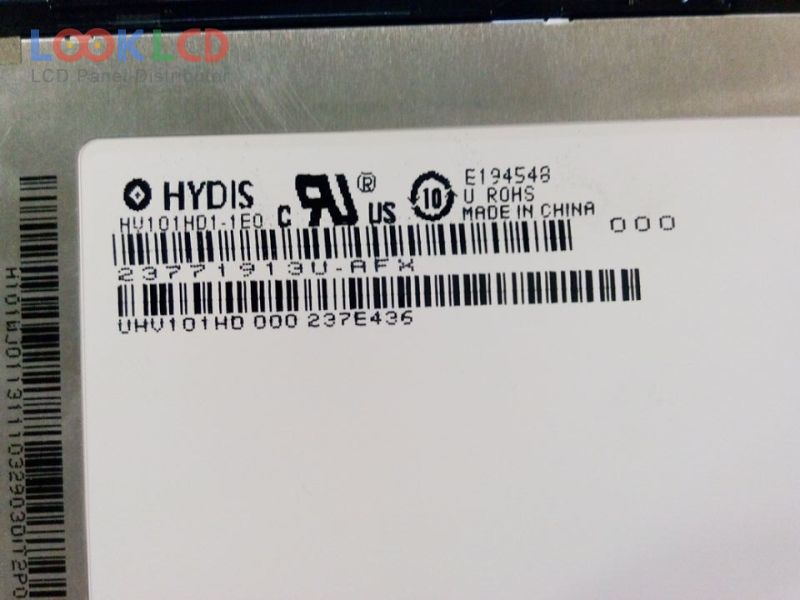

| Numéro d'article | HV101HD1-1E0 |
| Marque | HYDIS |
| Taille | 10.1 |
| application | PAD |
| Résolution | 1366×768 |
| Composition | LCM |
| Luminosité | |
| CR | 800:1 |
| Couleurs | 16.7M |
| Rétroéclairage | WLED |
| Interface | LVDS |
| marque de panneau | HYDIS |
| modèle de panneau | HV101HD1-1E0 |
| type de panneau | a-Si TFT-LCD , LCM |
| taille du panneau | 10.1 inch |
| résolution | 1366(RGB)×768 , WXGA |
| mode d'affichage | HFFS, Normally Black, Transmissive |
| zone active | 223.341×125.568 mm |
| surface | |
| luminosité | |
| Rapport de contraste | 800:1 (Typ.) |
| couleurs d'affichage | 16.7M (8-bit), CIE193150% |
| Temps de réponse | 30 (Typ.)(Tr+Td) |
| angle de vue | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| fréquence | 60Hz |
| type de lampe | WLEDEmbedded (LED Driver) |
| interface de signaux | LVDS (1 ch, 8-bit), 40 pins |
| tension d'entrée | 3.3V (Typ.) |
| AM-19201200B1TZQW-T00 | AMPIRE | 10.1 | 1920×1200 |
| B101AW06 V1 HW0A | AUO | 10.1 | 1024×600 |
| HSD101PFW4-B01 | HannStar | 10.1 | 1024×600 |
| HV101HD1-1E0 | HYDIS | 10.1 | 1366×768 |
| HV101HD1-1E2 | HYDIS | 10.1 | 1366×768 |
| LTL101AL06-W02 | Samsung | 10.1 | 1280×800 |
| LTN101NT05-U03 | Samsung | 10.1 | 1024×600 |
| N101BCG-GK1 | Innolux | 10.1 | 1366×768 |
| N101ICG-L21 Rev.C2 | Innolux | 10.1 | 1280×800 |
| TT101WSQ-N10 | BOE | 10.1 | 1024×600 |
| B101EAN01.5 | AUO | 10.1 | 1280×800 |
| EJ070IA-04A | Innolux | 7.0 | 800×1280 |
| HE101NA-02C | Innolux | 10.1 | 1280×800 |
| HX121WX1-103 | HYDIS | 12.1 | 1280×800 |
| LC104S1-A1 | LG Display | 10.4 | 800×600 |
| LP097QX1-SPAV | LG Display | 9.7 | 2048×1536 |
| LTL101DL03-T01 | Samsung | 10.1 | 2560×1600 |
| LTL106HL01-001 | Samsung | 10.6 | 1920×1080 |
| N101ICG-L21 Rev.A1 | Innolux | 10.1 | 1280×800 |
| TM080VDSP01 | Tianma | 8.0 | 1200×1920 |
