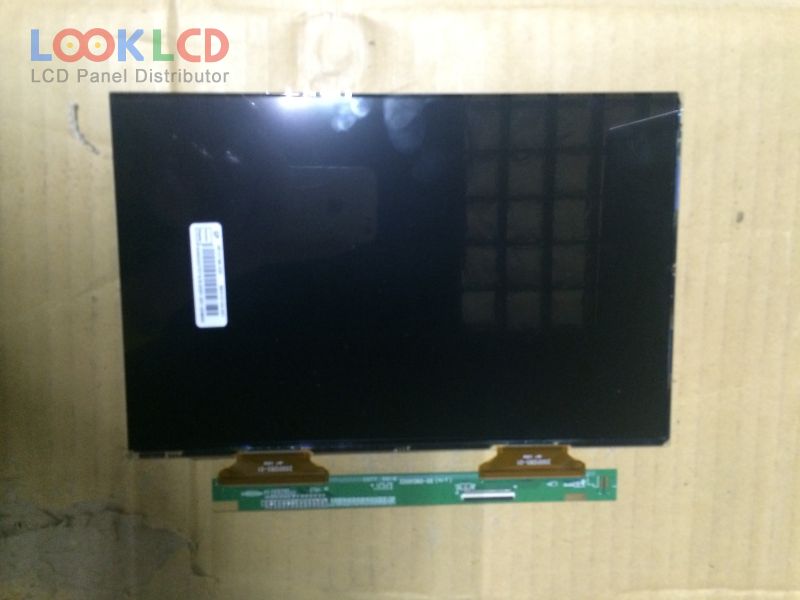

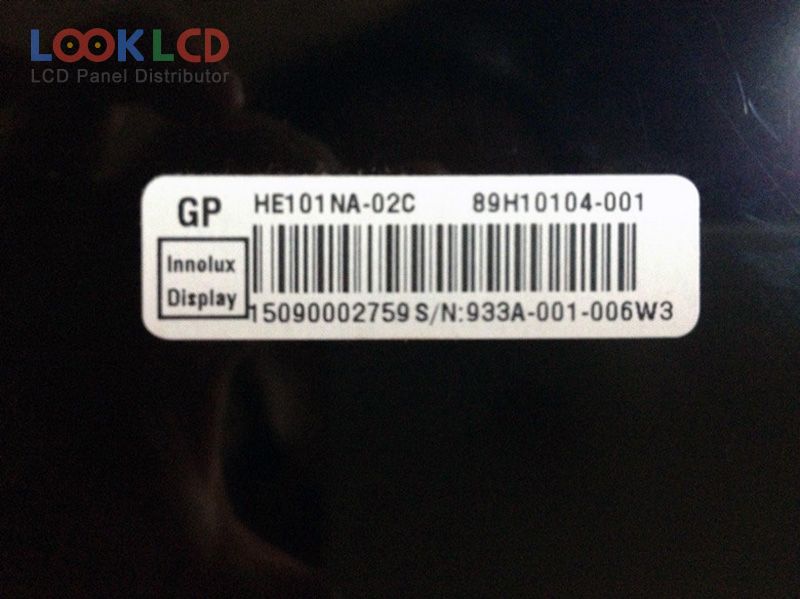

| Numéro d'article | HE101NA-02C |
| Marque | Innolux |
| Taille | 10.1 |
| application | PAD |
| Résolution | 1280×800 |
| Composition | CELL |
| Luminosité | 0 |
| CR | 700:1 |
| Couleurs | 16.7M |
| Rétroéclairage | No B/L |
| Interface | TTL |
| marque de panneau | CHIMEI INNOLUX |
| modèle de panneau | HE101NA-02C |
| type de panneau | a-Si TFT-LCD , CELL |
| taille du panneau | 10.1 inch |
| résolution | 1280(RGB)×800 , WXGA |
| mode d'affichage | TN, Normally White, Transmissive |
| zone active | 216.96×135.6 mm |
| contour | 224.21×145×1.43 mm |
| surface | Glare (Haze 0%) |
| profondeur de verre | 0.50+0.50 mm |
| Rapport de contraste | 700:1 (Typ.) |
| couleurs d'affichage | 16.7M (8-bit) |
| Temps de réponse | 10/20 (Typ.)(Tr/Td) |
| angle de vue | 75/70/75/75 (Typ.)(CR≥10)(L/R/U/D) |
| fréquence | 60Hz |
| interface de signaux | Parallel RGB (1 ch, 8-bit), 40 pins |
| tension d'entrée | 3.3/11.0/20.0/-6.8V (Typ.)(DVDD/AVDD/VGH/VGL) |
