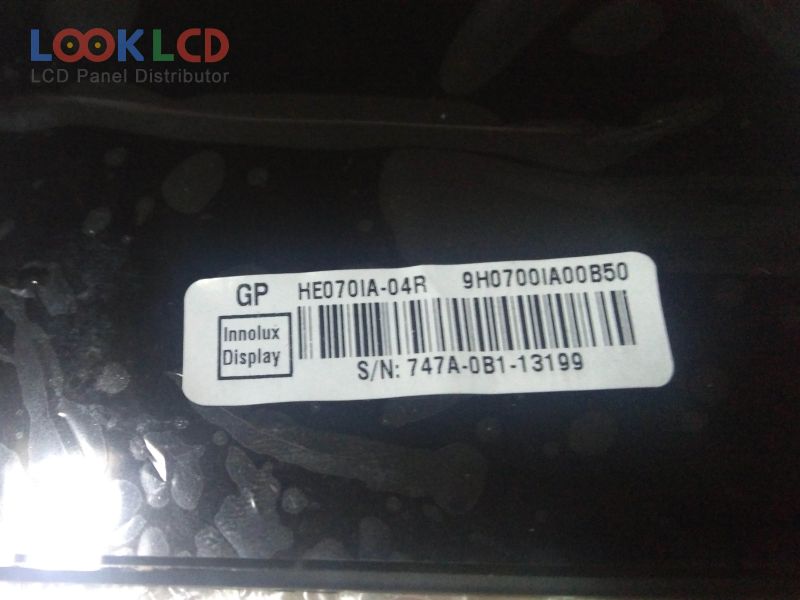

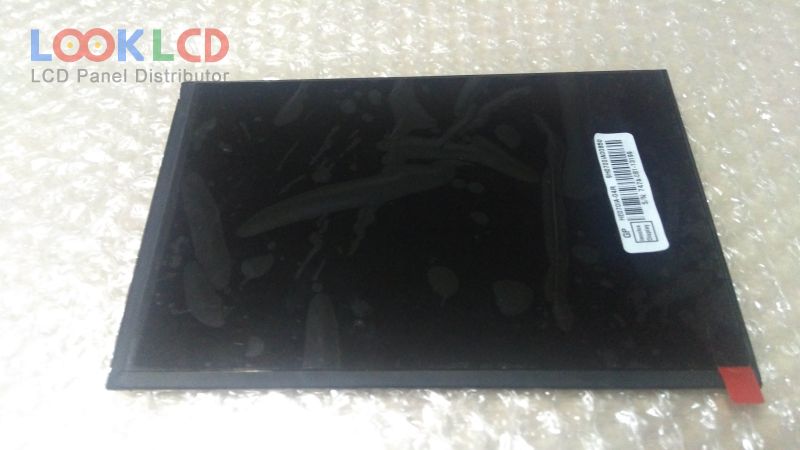

| Numéro d'article | HE070IA-04R |
| Marque | Innolux |
| Taille | 7.0 |
| application | PAD |
| Résolution | 800×1280 |
| Composition | CELL |
| Luminosité | 0 |
| CR | 800:1 |
| Couleurs | 16.7M |
| Rétroéclairage | No B/L |
| Interface | LVDS |
| marque de panneau | CHIMEI INNOLUX |
| modèle de panneau | HE070IA-04R |
| type de panneau | a-Si TFT-LCD , CELL |
| taille du panneau | 7.0 inch |
| résolution | 800(RGB)×1280 , WXGA |
| mode d'affichage | IPS, Normally Black, Transmissive |
| zone active | 94.2×150.72 mm |
| contour | 101.5×159.52×1.27 mm |
| surface | Hard coating |
| profondeur de verre | 0.50+0.50 mm |
| transmissivité | 3.6% (Typ.)(with Polarizer) |
| Rapport de contraste | 800:1 (Typ.) |
| couleurs d'affichage | 16.7M (8-bit), CIE193160% |
| Temps de réponse | 50 (Typ.)(Tr+Td) |
| angle de vue | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| fréquence | 60Hz |
| interface de signaux | LVDS (1 ch, 8-bit), 40 pins |
| tension d'entrée | 3.3/8.8/-7.0/22V (Typ.)(VDD/AVDD/VGH/VGL) |
