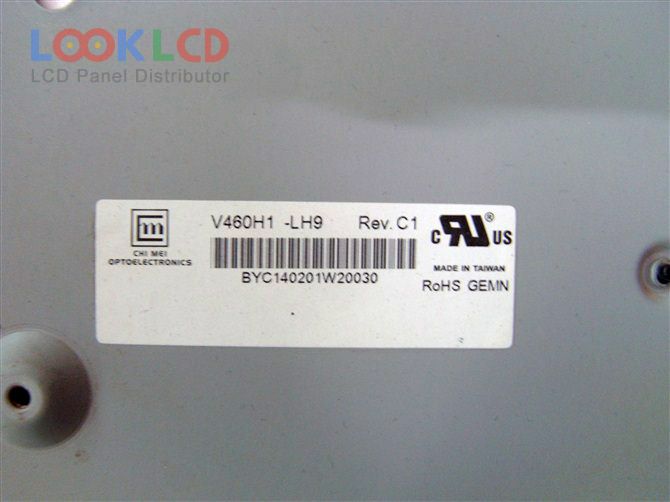

| Numéro d'article | V460H1-LH9 |
| Marque | Innolux |
| Taille | 46 |
| application | LCTV |
| Résolution | 1920×1080 |
| Composition | LCM |
| Luminosité | 450 |
| CR | 6000:1 |
| Couleurs | 16.7M |
| Rétroéclairage | CCFL |
| Interface | LVDS |
| marque de panneau | CHIMEI INNOLUX |
| modèle de panneau | V460H1-LH9 |
| type de panneau | a-Si TFT-LCD , LCM |
| taille du panneau | 46 inch |
| résolution | 1920(RGB)×1080 , FHD |
| mode d'affichage | Super MVA, Normally Black, Transmissive |
| zone active | 1018.08×572.67 mm |
| contour | 1083×627 mm |
| surface | Antiglare (Haze 11%), Hard coating (3H) |
| luminosité | 450 cd/m² (Typ.) |
| Rapport de contraste | 6000:1 (Typ.) |
| couleurs d'affichage | 16.7M (8-bit), CIE193172% |
| Temps de réponse | 6.5ms |
| angle de vue | 88/88/88/88 (Typ.)(CR≥20)(L/R/U/D) |
| fréquence | 120Hz (60Hz Input) |
| type de lampe | 14 pcsCCFLEmbedded (Inverter) |
| interface de signaux | LVDS (2 ch, 8/10-bit), 51 pins |
| tension d'entrée | 12.0V (Typ.) |
