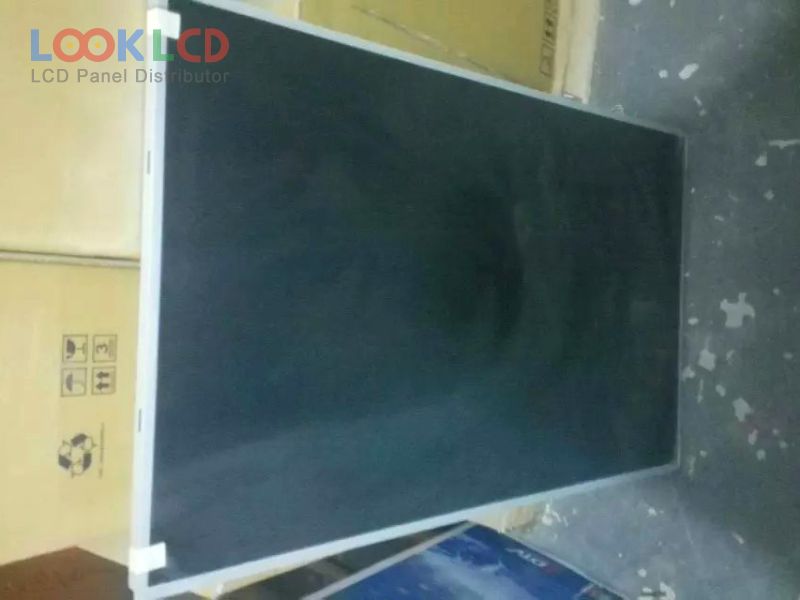

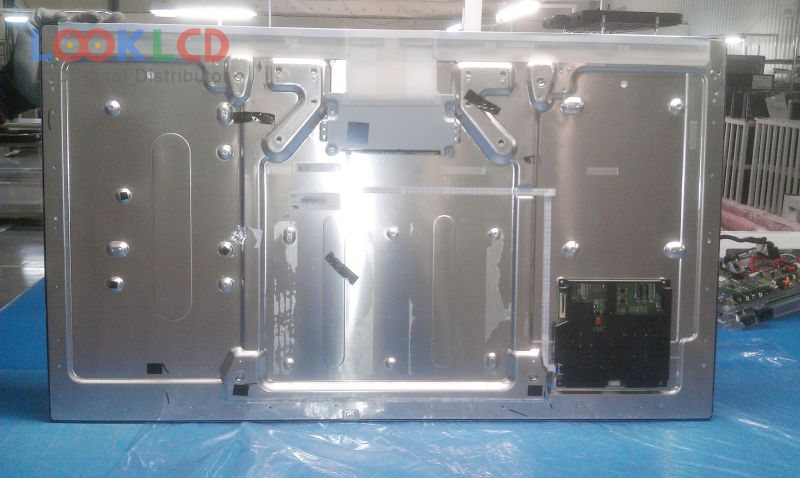

| Numéro d'article | V400HK2-LS5 |
| Marque | Innolux |
| Taille | 40 |
| application | LCTV |
| Résolution | 1920×1080 |
| Composition | LCM |
| Luminosité | 400 |
| CR | 5000:1 |
| Couleurs | 1.07B |
| Rétroéclairage | WLED |
| Interface | LVDS |
| marque de panneau | CHIMEI INNOLUX |

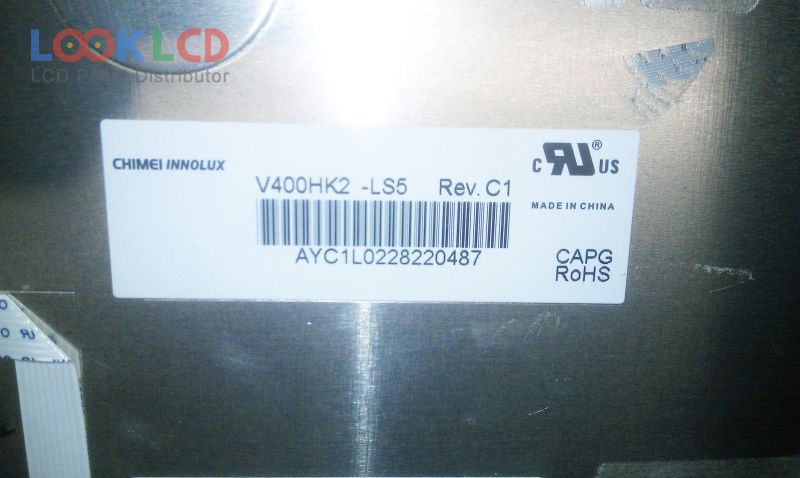

| modèle de panneau | V400HK2-LS5 |
| type de panneau | a-Si TFT-LCD , LCM |
| taille du panneau | 40 inch |
| résolution | 1920(RGB)×1080 , FHD |
| mode d'affichage | Super MVA, Normally Black, Transmissive |
| zone active | 885.6×498.15 mm |
| contour | 912.4×527.6 mm |
| surface | Antiglare (Haze 11%), Hard coating (3H) |
| luminosité | 400 cd/m² (Typ.) |
| Rapport de contraste | 5000:1 (Typ.) |
| couleurs d'affichage | 1.07B (8-bit + Hi-FRC), CIE193172% |
| Temps de réponse | 6.5 (Typ.)(G to G) |
| angle de vue | 88/88/88/88 (Typ.)(CR≥20)(L/R/U/D) |
| fréquence | 120Hz |
| type de lampe | WLEDEmbedded (LED Driver) |
| interface de signaux | LVDS (4 ch, 10-bit), 102 pins |
| tension d'entrée | 12.0V (Typ.) |
| V400H1-L03 | Innolux | 40 | 1920×1080 |
| V400H1-L05 | Innolux | 40 | 1920×1080 |
| V400H1-L10 | Innolux | 40 | 1920×1080 |
| V400H1-L11 | Innolux | 40 | 1920×1080 |
| V400H1-LHA | Innolux | 40 | 1920×1080 |
| V400HJ2-LE2 | Innolux | 40 | 1920×1080 |
| V400HJ6-LE8 | Innolux | 40 | 1920×1080 |
| V400HJ6-ME2 | Innolux | 40 | 1920×1080 |
| V400HJ6-PE1 | Innolux | 40 | 1920×1080 |
| V400HK7-PE6 | Innolux | 40 | 1920×1080 |
| LC320EUD-SDA2 | LG Display | 31.5 | 1920×1080 |
| LC370EUN-SEM2 | LG Display | 36.5 | 1920×1080 |
| LC420DUE-FGA4 | LG Display | 42 | 1920×1080 |
| LC420WUE-SBC1 | LG Display | 42 | 1920×1080 |
| LC420WUF-SBN1 | LG Display | 42 | 1920×1080 |
| LC420WX8-SLA1 | LG Display | 42 | 1366×768 |
| LTA320HM03 | Samsung | 31.5 | 1920×1080 |
| T315XW04 V3 | AUO | 31.5 | 1366×768 |
| T650HVN07.0 | AUO | 65 | 1920×1080 |
| V420H2-L01 | Innolux | 42 | 1920×1080 |
