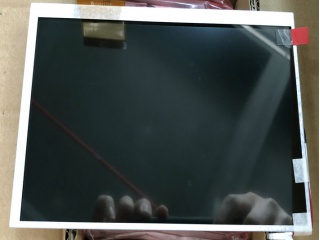

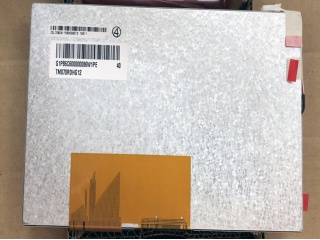

| Numéro d'article | TM070RDHG12 |
| Marque | TIANMA |
| Taille | 7.0 |
| application | Portable DVD Player |
| Résolution | 800×480 |
| Composition | a-Si TFT-LCD, LCM |
| Luminosité | |
| CR | 500:1 |
| Couleurs | 262K/16.7M |
| Rétroéclairage | WLED |
| Interface | Parallel |
| marque | TIANMA |
| modèle | TM070RDHG12 |
| taille diagonale | 7.0 inch |
| taper | a-Si TFT-LCD, LCM |
| format pixel | 800(RGB)×480 [WVGA] 134PPI |
| configuration | RGB Vertical Stripe |
| zone active | 154.08(H)×85.92(V) mm |
| contour sombre. | 164.9(H)×100(V) ×6(D) mm |
| zone de lunette | 157.08(H)×89.39(V) mm |
| traitement | Antiglare |
| luminosité | 350 cd/m² (Typ.) |
| Rapport de contraste | 500:1 (Typ.) (TM) |
| direction de la vue | 12 o'clock |
| Temps de réponse | 20 (Typ.)(Tr+Td) |
| angle de vue | 70/70/60/70 (Typ.)(CR≥10) |
| mode de fonctionnement | TN, Normally White, Transmissive |
| couleur de soutien | 262K/16.7M 50% NTSC |
| Source de lumière | WLED [3S7P] , 20K hours , W/O Driver |
| lester | 165g (Typ.) |
| conçu pour | Portable DVD Player Digital Photo Frame |
| fréquence d'images | 60Hz |
| Ecran tactile | Without |
| type d'interface | Parallel RGB (1 ch, 6/8-bit) , 60 pins FPC |
| source de courant | 3.3/10.6/10.6/-7V (Typ.)(VCC/AVDD/VGH/VGL) |
| environnement | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
