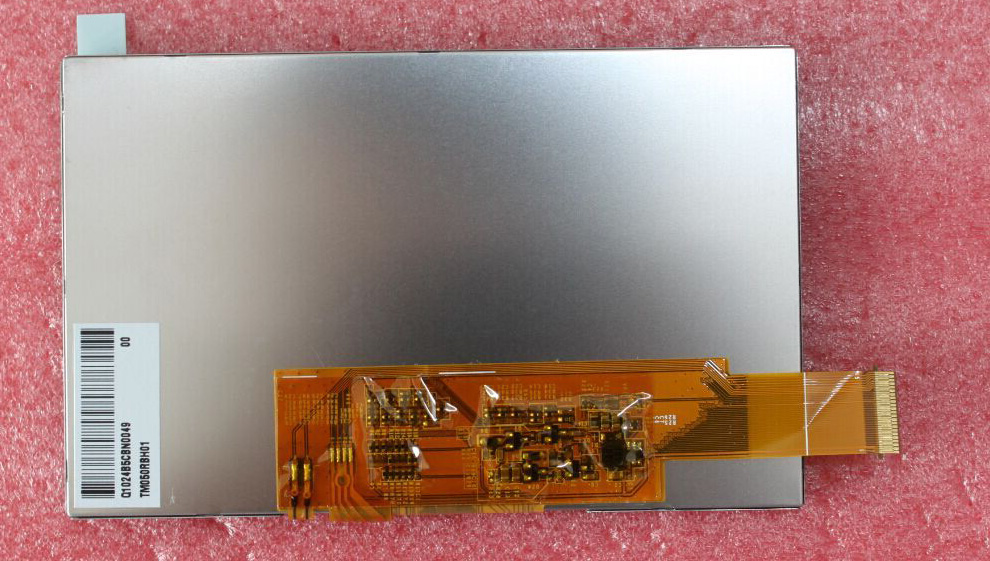

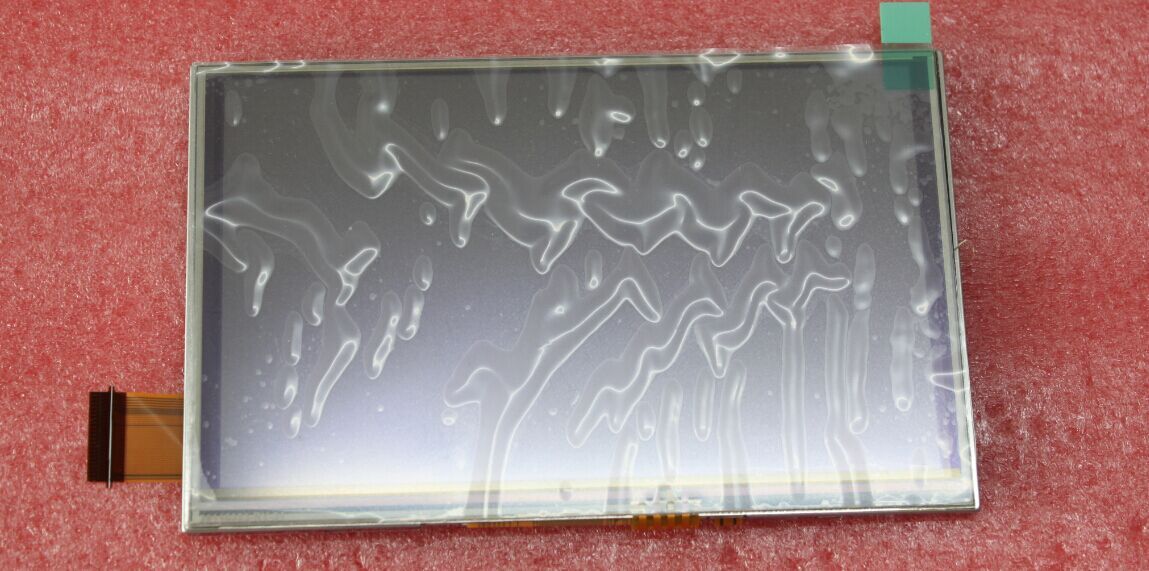

| Numéro d'article | TM050RBH01-00 |
| Marque | TIANMA |
| Taille | 5.0 |
| application | Industrial Portable |
| Résolution | 800×480 |
| Composition | a-Si TFT-LCD, LCM |
| Luminosité | |
| CR | 450:1 |
| Couleurs | 16.7M |
| Rétroéclairage | WLED |
| Interface | Parallel |
| marque | TIANMA |
| modèle | TM050RBH01-00 |
| taille diagonale | 5.0 inch |
| taper | a-Si TFT-LCD, LCM |
| format pixel | 800(RGB)×480 [WVGA] 188PPI |
| configuration | RGB Vertical Stripe |
| zone active | 108(H)×64.8(V) mm |
| contour sombre. | 120.7(H)×75.8(V) ×6.3(D) mm |
| zone de lunette | - |
| traitement | Antiglare, Hard coating (3H) |
| luminosité | 300 cd/m² (Typ.) |
| Rapport de contraste | 450:1 (Typ.) (TM) |
| direction de la vue | 12 o'clock |
| Temps de réponse | 20 (Typ.)(Tr+Td) |
| angle de vue | 70/70/50/70 (Typ.)(CR≥10) |
| mode de fonctionnement | TN, Normally White, Transmissive |
| couleur de soutien | 16.7M 50% NTSC |
| Source de lumière | WLED [6S3P] , 20K hours , W/O Driver |
| lester | 76.3g |
| conçu pour | Industrial Portable Navigation MID UMPC MP3 PMP |
| fréquence d'images | 60Hz |
| Ecran tactile | 4-wire Resistive Touch |
| type d'interface | Parallel RGB (1 ch, 8-bit) , 45 pins FPC |
| source de courant | 3.3V (Typ.) |
| environnement | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
