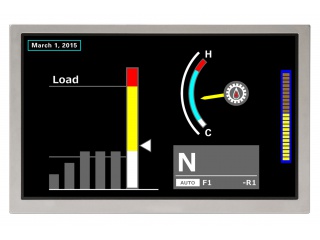

| Numéro d'article | NL8048BC21-03F |
| Marque | NLT |
| Taille | 8.0 |
| application | Industrial Outdoor H |
| Résolution | 800×480 |
| Composition | a-Si TFT-LCD , LCM |
| Luminosité | |
| CR | 1000:1 |
| Couleurs | 262K/16.7M |
| Rétroéclairage | WLED |
| Interface | LVDS |
| marque | NLT |
| taille diagonale | 8.0 inch |
| format pixel | 800(RGB)×480 [WVGA] 116PPI |
| zone active | 174(H)×104.4(V) mm |
| zone de lunette | - |
| luminosité | 1000 cd/m² (Typ.) |
| direction de la vue | Symmetry |
| angle de vue | 88/88/88/88 (Typ.)(CR≥10) |
| couleur de soutien | 262K/16.7M 72% NTSC |
| lester | 225g |
| fréquence d'images | 60Hz |
| type d'interface | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| source de courant | 3.3V (Typ.) |
| environnement | Operating Temperature: -40 ~ 85 °C ; Storage Temperature: -40 ~ 85 °C ; Vibration Level: 6.8G (66.64 m/s²) |
| modèle | NL8048BC21-03F |
| taper | a-Si TFT-LCD , LCM |
| configuration | RGB Vertical Stripe |
| contour sombre. | 192(H)×122(V) mm |
| traitement | Antiglare |
| Rapport de contraste | 1000:1 (Typ.) (TM) |
| Temps de réponse | 20 (Typ.)(Tr+Td) |
| mode de fonctionnement | SFT, Normally Black, Transmissive |
| Source de lumière | WLED |
| conçu pour | Industrial Outdoor High Brightness |
| Ecran tactile | Without |
