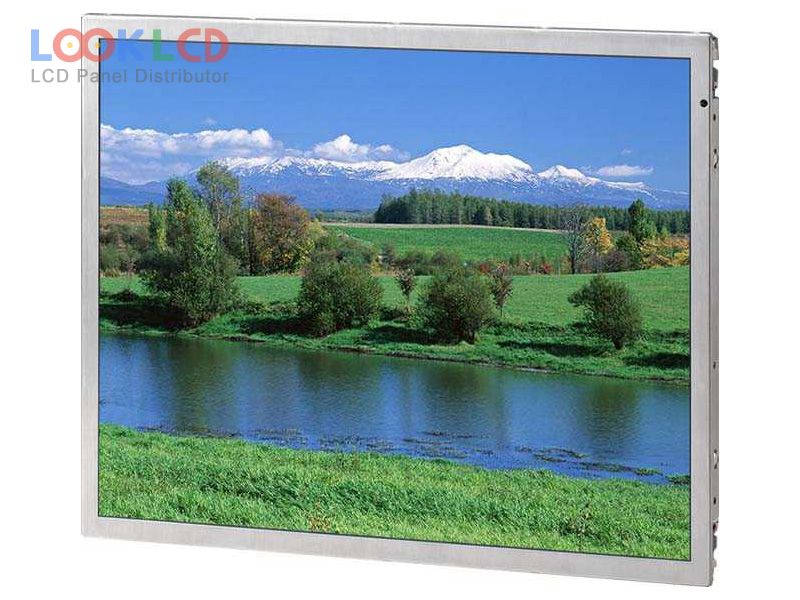

| Numéro d'article | NL10276BC30-38B |
| Marque | NLT |
| Taille | 15.0 |
| application | IA |
| Résolution | 1024×768 |
| Composition | LCM |
| Luminosité | 250 |
| CR | 700:1 |
| Couleurs | 16.7M |
| Rétroéclairage | CCFL |
| Interface | LVDS |
| marque de panneau | NEC |
| modèle de panneau | NL10276BC30-38B |
| type de panneau | a-Si TFT-LCD , LCM |
| taille du panneau | 15.0 inch |
| résolution | 1024(RGB)×768 , XGA |
| mode d'affichage | UA-SFT, Normally Black, Transmissive |
| zone active | 304.128×228.096 mm |
| contour | 326.5×253.5 mm |
| surface | Antiglare, Hard coating (3H) |
| luminosité | 250 cd/m² (Typ.) |
| Rapport de contraste | 700:1 (Typ.) |
| couleurs d'affichage | 16.7M (8-bit), CIE193172% |
| Temps de réponse | 25 (Typ.)(Tr+Td) |
| angle de vue | 88/88/88/88 (Typ.)(CR≥10)(L/R/U/D) |
| fréquence | 60Hz |
| type de lampe | 2 pcsCCFLWithout Driver |
| interface de signaux | LVDS (1 ch, 8-bit), 20 pins |
| tension d'entrée | 3.3V (Typ.) |
