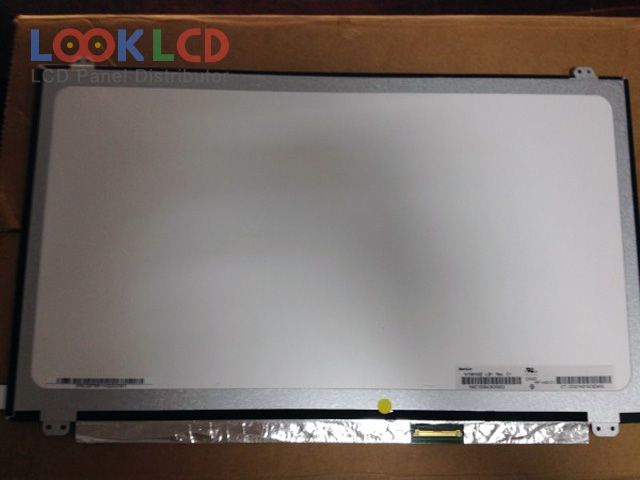

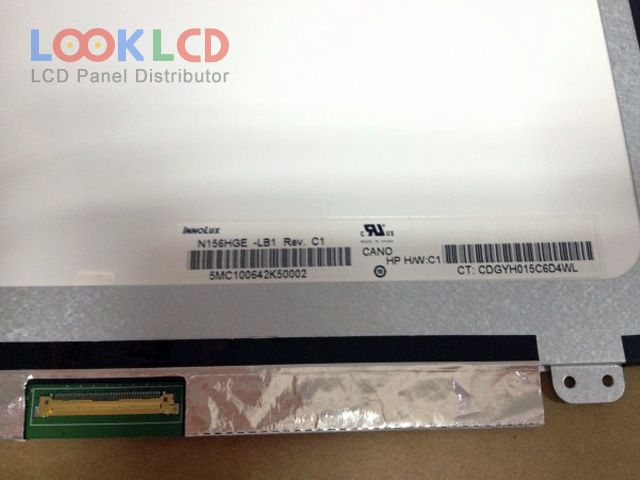

| Numéro d'article | N156HGE-LB1 |
| Marque | Innolux |
| Taille | 15.6 |
| application | NBPC |
| Résolution | 1920×1080 |
| Composition | LCM |
| Luminosité | 350 |
| CR | 600:1 |
| Couleurs | 262K |
| Rétroéclairage | WLED |
| Interface | LVDS |
| marque de panneau | CHIMEI INNOLUX |
| modèle de panneau | N156HGE-LB1 2 Compatible model |
| type de panneau | a-Si TFT-LCD , LCM |
| taille du panneau | 15.6 inch |
| résolution | 1920(RGB)×1080 , FHD |
| mode d'affichage | TN, Normally White, Transmissive |
| zone active | 344.16×193.59 mm |
| contour | 359.5×224.3×3.2 mm |
| style de forme | Slim (PCBA Flat, Depth ≤3.2mm) |
| surface | Glare (Haze 0%), Hard coating (3H) |
| luminosité | 350 cd/m² (Typ.) |
| Rapport de contraste | 600:1 (Typ.) |
| couleurs d'affichage | 262K (6-bit), CIE193160% |
| Temps de réponse | 3/8 (Typ.)(Tr/Td) |
| angle de vue | 45/45/20/45 (Typ.)(CR≥10)(L/R/U/D) |
| fréquence | 60Hz |
| type de lampe | 6 stringsWLEDEmbedded (LED Driver) |
| interface de signaux | LVDS (2 ch, 6-bit), 40 pins |
| tension d'entrée | 3.3V (Typ.) |
