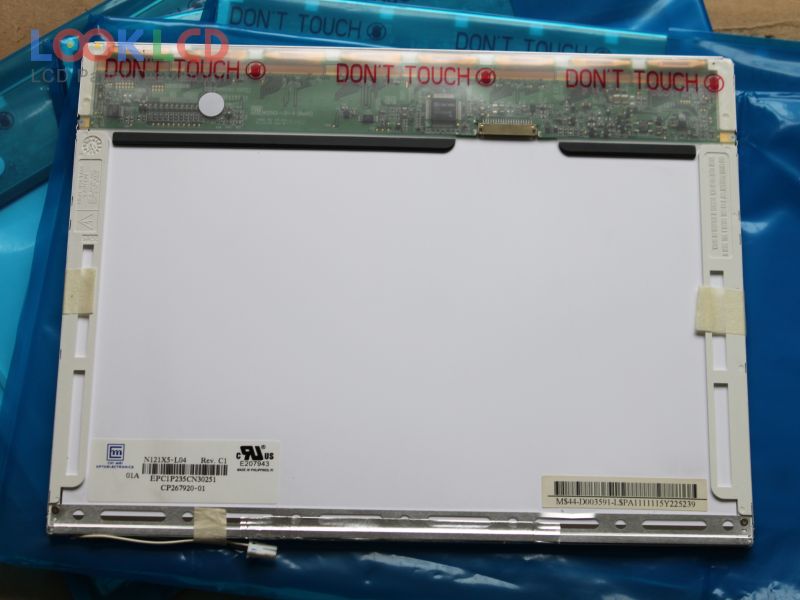

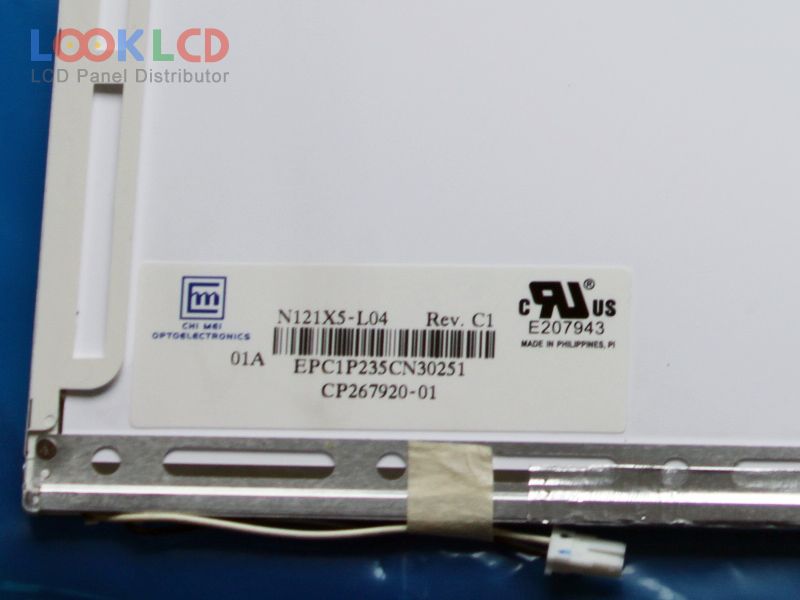

| Numéro d'article | N121X5-L04 |
| Marque | Innolux |
| Taille | 12.1 |
| application | NBPC |
| Résolution | 1024×768 |
| Composition | LCM |
| Luminosité | 175 |
| CR | 500:1 |
| Couleurs | 262K |
| Rétroéclairage | CCFL |
| Interface | LVDS |
| marque de panneau | CMO |
| modèle de panneau | N121X5-L04 6 Compatible model |
| type de panneau | a-Si TFT-LCD , LCM |
| taille du panneau | 12.1 inch |
| résolution | 1024(RGB)×768 , XGA |
| mode d'affichage | TN, Normally White, Transmissive |
| zone active | 245.76×184.32 mm |
| contour | 261×198×5 mm |
| surface | Antiglare (Haze 25%), Hard coating (3H) |
| luminosité | 175 cd/m² (Typ.) |
| Rapport de contraste | 500:1 (Typ.) |
| couleurs d'affichage | 262K (6-bit), CIE193145% |
| Temps de réponse | 5/11 (Typ.)(Tr/Td) |
| angle de vue | 45/45/20/45 (Typ.)(CR≥10)(L/R/U/D) |
| fréquence | 60Hz |
| type de lampe | 1 pcsCCFLWithout Driver |
| interface de signaux | LVDS (1 ch, 6-bit), 20 pins |
| tension d'entrée | 3.3V (Typ.) |
| B121EW09 V2 | AUO | 12.1 | 1280×800 |
| HV121WX5-114 | HYDIS | 12.1 | 1280×800 |
| LMG9980ZWCC-01 | KOE | 12.1 | 800×600 |
| LQ121S1DC71 | SHARP | 12.1 | 800×600 |
| LTN121AT02-A01 | Samsung | 12.1 | 1280×800 |
| N121X5-L04 | Innolux | 12.1 | 1024×768 |
| N121X5-L06 | Innolux | 12.1 | 1024×768 |
| NL8060BC31-13A | NLT | 12.1 | 800×600 |
| TM121SV-A01 | SANYO | 12.1 | 800×600 |
| TM121XG-02L01 | SANYO | 12.1 | 1024×768 |
| B140XW02 V1 | AUO | 14.0 | 1366×768 |
| B156HW01 V1 | AUO | 15.6 | 1920×1080 |
| LP101WH1-TLB2 | LG Display | 10.1 | 1366×768 |
| LP154WX5-TLC2 | LG Display | 15.4 | 1280×800 |
| LP156WF4-SLB1 | LG Display | 15.6 | 1920×1080 |
| LP171WP4-TLR1 | LG Display | 17.1 | 1440×900 |
| LQ133M1JW03 | SHARP | 13.3 | 1920×1080 |
| LTN121AT11-803 | Samsung | 12.1 | 1280×800 |
| LTN156AT17-D01 | Samsung | 15.6 | 1366×768 |
| LTN156HT02-B01 | Samsung | 15.6 | 1920×1080 |
