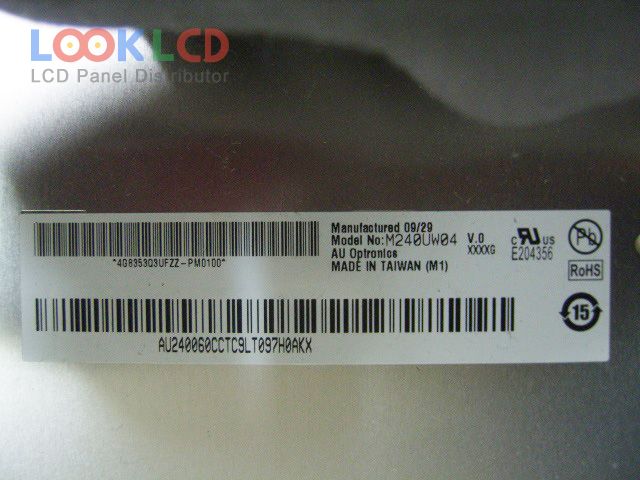

| Numéro d'article | M240UW04 V0 |
| Marque | AUO |
| Taille | 24.0 |
| application | DMPC |
| Résolution | 1920×1200 |
| Composition | LCM |
| Luminosité | 400 |
| CR | 800:1 |
| Couleurs | 16.7M |
| Rétroéclairage | CCFL |
| Interface | LVDS |
| marque de panneau | AUO |
| modèle de panneau | M240UW04 V0 |
| type de panneau | a-Si TFT-LCD , LCM |
| taille du panneau | 24.0 inch |
| résolution | 1920(RGB)×1200 , WUXGA |
| mode d'affichage | TN, Normally White, Transmissive |
| zone active | 518.4×324 mm |
| contour | 546.4×352 mm |
| surface | Antiglare, Hard coating (3H) |
| luminosité | 400 cd/m² (Typ.) |
| Rapport de contraste | 800:1 (Typ.) |
| couleurs d'affichage | 16.7M (6-bit + Hi-FRC), CIE193172% |
| Temps de réponse | 3.4/1.6 (Typ.)(Tr/Td) |
| angle de vue | 85/85/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| fréquence | 60Hz |
| type de lampe | 6 pcsCCFLWithout Driver |
| interface de signaux | LVDS (2 ch, 8-bit), 30 pins |
| tension d'entrée | 5.0V (Typ.) |
