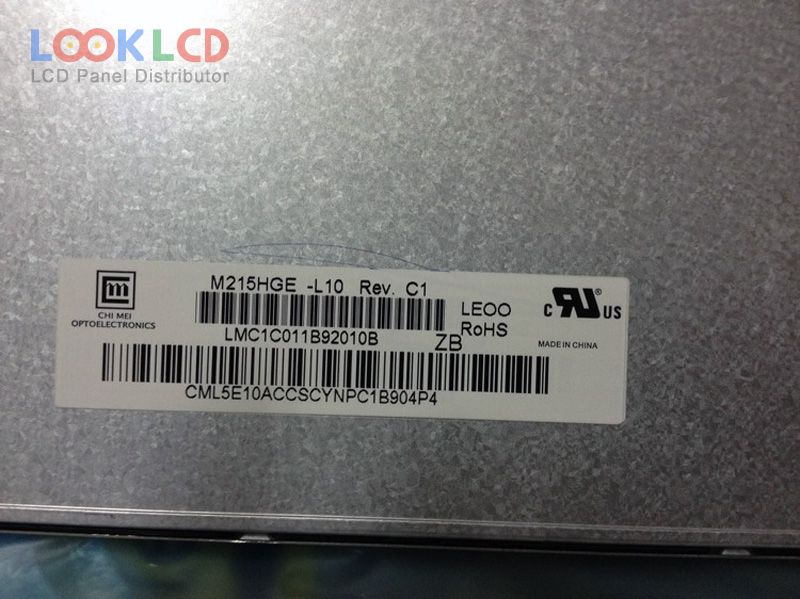

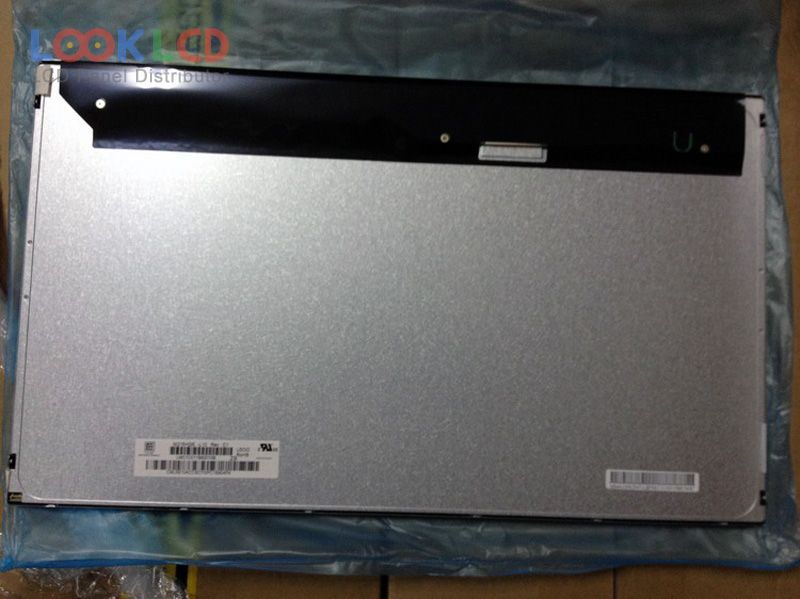

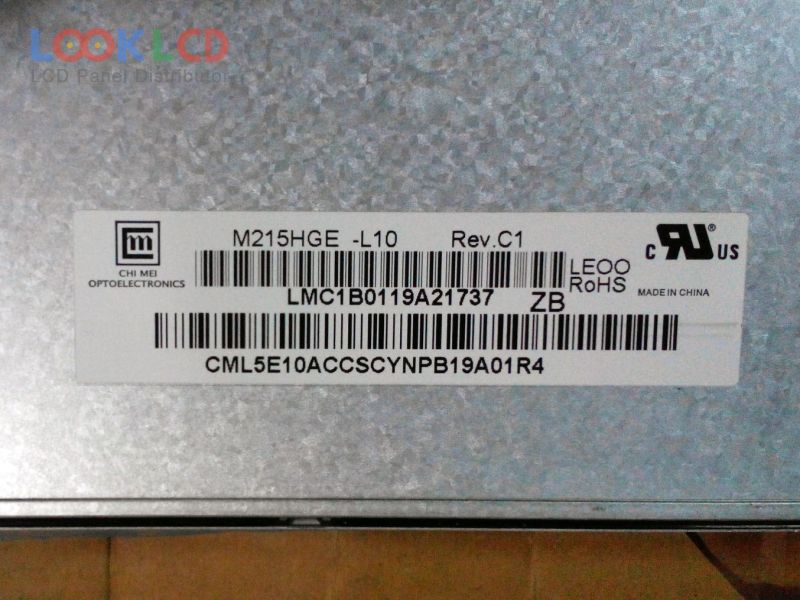

| Numéro d'article | M215HGE-L10 |
| Marque | Innolux |
| Taille | 21.5 |
| application | DMPC |
| Résolution | 1920×1080 |
| Composition | LCM |
| Luminosité | 250 |
| CR | 1000:1 |
| Couleurs | 16.7M |
| Rétroéclairage | WLED |
| Interface | LVDS |
| marque de panneau | CHIMEI INNOLUX |
| modèle de panneau | M215HGE-L10 |
| type de panneau | a-Si TFT-LCD , LCM |
| taille du panneau | 21.5 inch |
| résolution | 1920(RGB)×1080 , FHD |
| mode d'affichage | TN, Normally White, Transmissive |
| zone active | 476.64×268.11 mm |
| contour | 495.6×292.2×12 mm |
| surface | Antiglare (Haze 25%), Hard coating (3H) |
| luminosité | 250 cd/m² (Typ.) |
| Rapport de contraste | 1000:1 (Typ.) |
| couleurs d'affichage | 16.7M (8-bit), CIE193172% |
| Temps de réponse | 1.5/3.5 (Typ.)(Tr/Td) |
| angle de vue | 85/85/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| fréquence | 60Hz |
| type de lampe | 4 stringsWLEDWithout Driver |
| interface de signaux | LVDS (2 ch, 8-bit), 30 pins |
| tension d'entrée | 5.0V (Typ.) |
