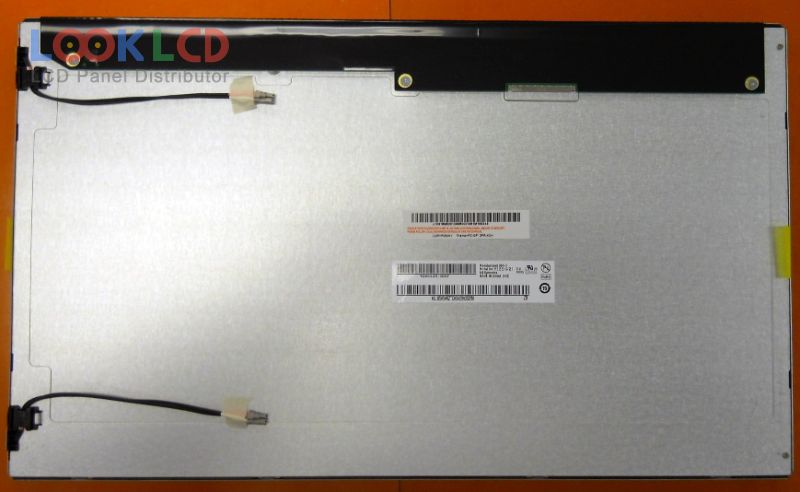

| Numéro d'article | M185XW01 V4 |
| Marque | AUO |
| Taille | 18.5 |
| application | DMPC |
| Résolution | 1366×768 |
| Composition | LCM |
| Luminosité | 250 |
| CR | 1000:1 |
| Couleurs | 16.7M |
| Rétroéclairage | CCFL |
| Interface | LVDS |
| marque de panneau | AUO |
| modèle de panneau | M185XW01 V4 |
| type de panneau | a-Si TFT-LCD , LCM |
| taille du panneau | 18.5 inch |
| résolution | 1366(RGB)×768 , WXGA |
| mode d'affichage | TN, Normally White, Transmissive |
| zone active | 409.8×230.4 mm |
| contour | 430.37×254.6×16.5 mm |
| surface | Glare (Haze 0%), Hard coating (3H) |
| luminosité | 250 cd/m² (Typ.) |
| Rapport de contraste | 1000:1 (Typ.) |
| couleurs d'affichage | 16.7M (6-bit + Hi-FRC), CIE193172% |
| Temps de réponse | 3.6/1.4 (Typ.)(Tr/Td) |
| angle de vue | 85/85/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| fréquence | 60Hz |
| type de lampe | 2 pcsCCFLWithout Driver |
| interface de signaux | LVDS (1 ch, 8-bit), 30 pins |
| tension d'entrée | 5.0V (Typ.) |
| M185XTN01.0 | AUO | 18.5 | 1366×768 |
| M185XTN01.2 | AUO | 18.5 | 1366×768 |
| M185XTN01.3 | AUO | 18.5 | 1366×768 |
| M185XW01 V1 | AUO | 18.5 | 1366×768 |
| M185XW01 V2 | AUO | 18.5 | 1366×768 |
| M185XW01 V3 | AUO | 18.5 | 1366×768 |
| M185XW01 V4 | AUO | 18.5 | 1366×768 |
| M185XW01 V5 | AUO | 18.5 | 1366×768 |
| M185XW01 V8 | AUO | 18.5 | 1366×768 |
| M185XW01 VF | AUO | 18.5 | 1366×768 |
| LM215WF3-SDD1 | LG Display | 21.5 | 1920×1080 |
| LM215WF4-TLA3 | LG Display | 21.5 | 1920×1080 |
| LM238WF2-SSK1 | LG Display | 23.8 | 1920×1080 |
| LM270WF7-SSB1 | LG Display | 27.0 | 1920×1080 |
| LTM200KT01 | Samsung | 20.0 | 1600×900 |
| LTM213U4-L01 | Samsung | 21.3 | 1600×1200 |
| LTM213U6-L01 | Samsung | 21.3 | 1600×1200 |
| LTM270HL02 | Samsung | 27.0 | 1920×1080 |
| M150X3-T05 | Innolux | 15.0 | 1024×768 |
| M170ETN01.0 | AUO | 17.0 | 1280×1024 |
