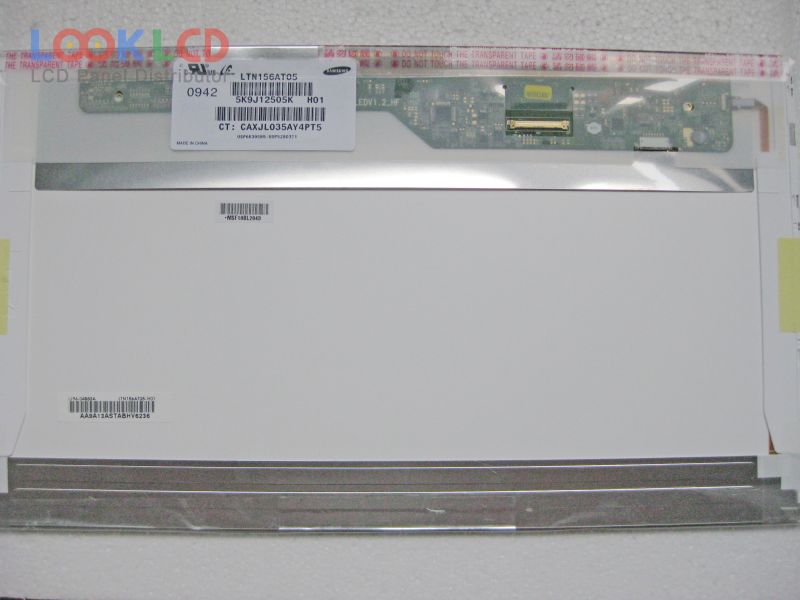

| Numéro d'article | LTN156AT05-H01 |
| Marque | Samsung |
| Taille | 15.6 |
| application | NBPC |
| Résolution | 1366×768 |
| Composition | LCM |
| Luminosité | 200 |
| CR | 500:1 |
| Couleurs | 262K |
| Rétroéclairage | WLED |
| Interface | LVDS |
| marque de panneau | SAMSUNG |
| modèle de panneau | LTN156AT05-H01 61 Compatible model |
| type de panneau | a-Si TFT-LCD , LCM |
| taille du panneau | 15.6 inch |
| résolution | 1366(RGB)×768 , WXGA |
| mode d'affichage | TN, Normally White, Transmissive |
| zone active | 344.232×193.536 mm |
| contour | 359.3×209.5×5.5 mm |
| style de forme | Wedge (PCBA Bent, Depth ≥5.2mm) |
| surface | Glare (Haze 0%), Hard coating (3H) |
| luminosité | 200 cd/m² (Typ.) |
| Rapport de contraste | 500:1 (Min.) |
| couleurs d'affichage | 262K (6-bit), CIE193160% |
| Temps de réponse | 16 (Typ.)(Tr+Td) |
| angle de vue | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| fréquence | 60Hz |
| type de lampe | 11S5PWLEDEmbedded (LED Driver) |
| interface de signaux | LVDS (1 ch, 6-bit), 40 pins |
| tension d'entrée | 3.3V (Typ.) |
