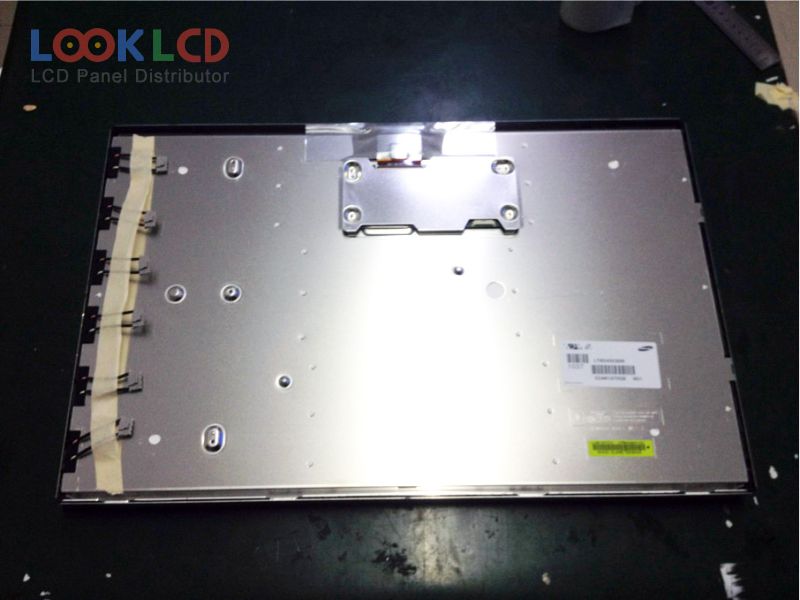

| Numéro d'article | LTM240CS09 |
| Marque | Samsung |
| Taille | 24.0 |
| application | DMPC |
| Résolution | 1920×1200 |
| Composition | LCM |
| Luminosité | 400 |
| CR | 1000:1 |
| Couleurs | 16.7M |
| Rétroéclairage | CCFL |
| Interface | LVDS |
| marque de panneau | SAMSUNG |
| modèle de panneau | LTM240CS09 |
| type de panneau | a-Si TFT-LCD , LCM |
| taille du panneau | 24.0 inch |
| résolution | 1920(RGB)×1200 , WUXGA |
| mode d'affichage | S-PVA, Normally Black, Transmissive |
| zone active | 518.4×324 mm |
| contour | 546.4×352 mm |
| surface | Antiglare (Haze 50%), Hard coating (3H) |
| luminosité | 400 cd/m² (Typ.) |
| Rapport de contraste | 1000:1 (Typ.) |
| couleurs d'affichage | 16.7M (8-bit), CIE193192% |
| Temps de réponse | 11/5 (Typ.)(Tr/Td); 6 (Typ.)(G to G) |
| angle de vue | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| fréquence | 60Hz |
| type de lampe | 6 pcsCCFLWithout Driver |
| interface de signaux | LVDS (2 ch, 8-bit), 30 pins |
| tension d'entrée | 5.0V (Typ.) |
