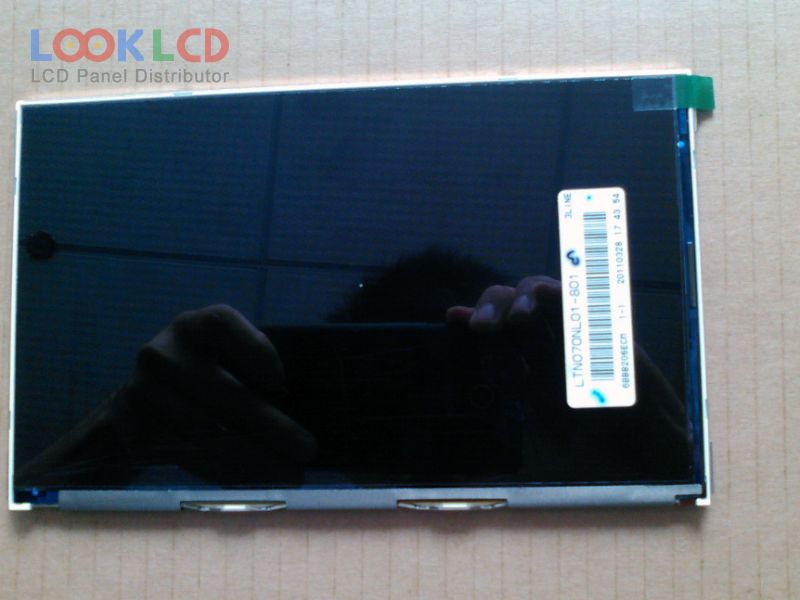

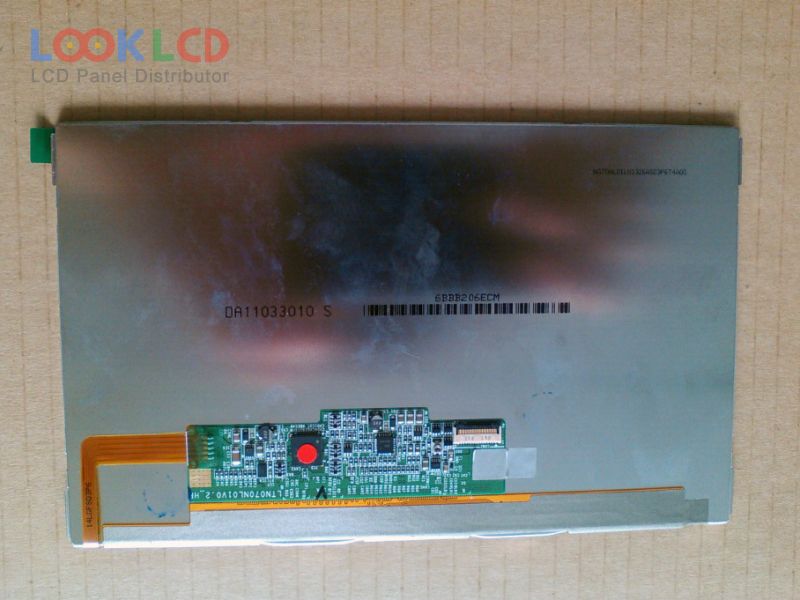

| Numéro d'article | LTL070NL01-801 |
| Marque | Samsung |
| Taille | 7.0 |
| application | PAD |
| Résolution | 1024×600 |
| Composition | LCM |
| Luminosité | 400 |
| CR | 800:1 |
| Couleurs | 16.2M |
| Rétroéclairage | WLED |
| Interface | LVDS |
| marque de panneau | SAMSUNG |
| modèle de panneau | LTL070NL01-801 |
| type de panneau | a-Si TFT-LCD , LCM |
| taille du panneau | 7.0 inch |
| résolution | 1024(RGB)×600 , WSVGA |
| mode d'affichage | PLS, Normally Black, Transmissive |
| zone active | 153.6×90 mm |
| contour | 164.05×99.96×4.37 mm |
| surface | Glare (Haze 0%), Hard coating (3H) |
| luminosité | 400 cd/m² (Typ.) |
| Rapport de contraste | 800:1 (Typ.) |
| couleurs d'affichage | 16.2M (6-bit + FRC), CIE193150% |
| Temps de réponse | 30 (Typ.)(Tr+Td) |
| angle de vue | 80/80/80/80 (Min.)(CR≥10)(L/R/U/D) |
| fréquence | 60Hz |
| type de lampe | 6S4PWLEDEmbedded (LED Driver) |
| interface de signaux | LVDS (1 ch, 8-bit) |
| tension d'entrée | 3.7V (Typ.) |
