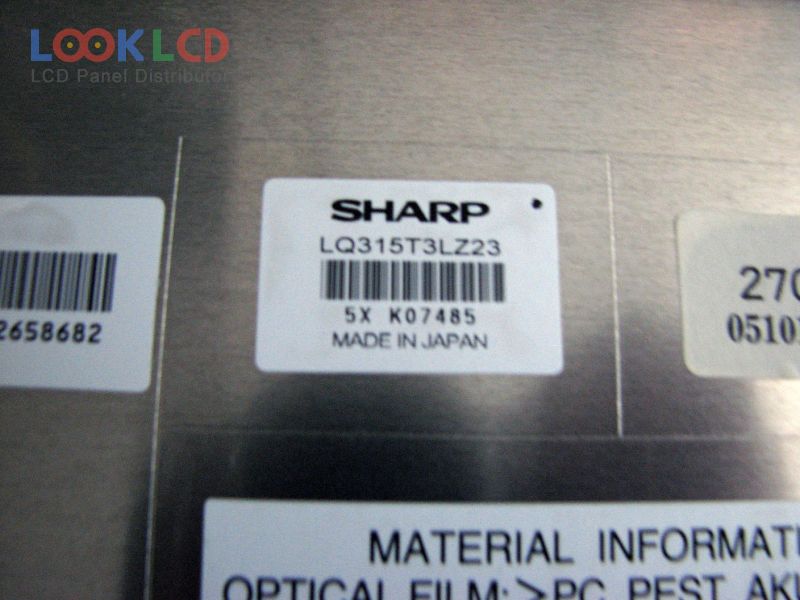

| Numéro d'article | LQ315T3LZ23 |
| Marque | SHARP |
| Taille | 31.5 |
| application | LCTV |
| Résolution | 1366×768 |
| Composition | LCM |
| Luminosité | 500 |
| CR | 800:1 |
| Couleurs | 16.7M |
| Rétroéclairage | CCFL |
| Interface | LVDS |
| marque de panneau | SHARP |
| modèle de panneau | LQ315T3LZ23 |
| type de panneau | a-Si TFT-LCD , LCM |
| taille du panneau | 31.5 inch |
| résolution | 1366(RGB)×768 , WXGA |
| mode d'affichage | Normally Black, Transmissive |
| zone active | 697.685×392.256 mm |
| contour | 780×450 mm |
| surface | Antiglare (Haze 23%), Hard coating (2H), Antireflection |
| luminosité | 500 cd/m² (Typ.) |
| Rapport de contraste | 800:1 (Typ.) |
| couleurs d'affichage | 16.7M (8-bit), CIE193173% |
| Temps de réponse | 12/12 (Typ.)(Tr/Td) |
| angle de vue | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| fréquence | 60Hz |

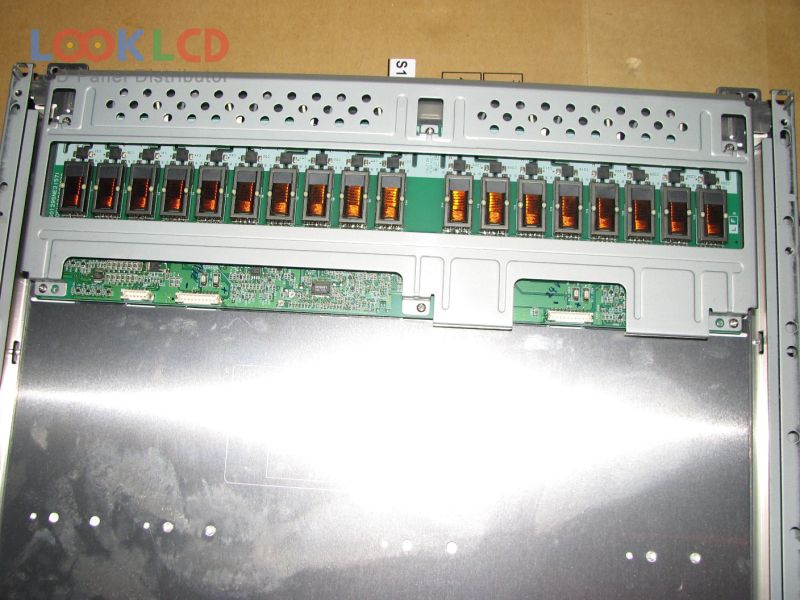

| type de lampe | 18 pcsCCFLEmbedded (Inverter) |
| interface de signaux | LVDS (1 ch, 8-bit), 37 pins |
| tension d'entrée | 5.0V (Typ.) |
