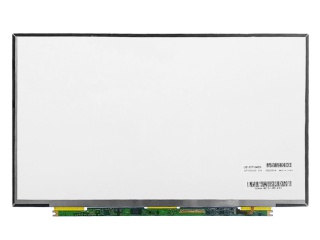

| Numéro d'article | LQ133T1JW23 |
| Marque | Sharp |
| Taille | 13.3 |
| application | Laptop |
| Résolution | 2560×1440 |
| Composition | Oxide TFT-LCD, LCM |
| Luminosité | |
| CR | 1000:1 |
| Couleurs | 16.7M |
| Rétroéclairage | WLED |
| Interface | eDP |
| marque | Sharp |
| modèle | LQ133T1JW23 (SHP1412) |
| taille diagonale | 13.3 inch |
| taper | Oxide TFT-LCD, LCM |
| format pixel | 2560(RGB)×1440 [Quad-HD] 221PPI |
| configuration | RGB Vertical Stripe |
| zone active | 293.76(H)×165.24(V) mm |
| contour sombre. | 304.98(H)×187.9(V) ×2.6(D) mm |
| zone de lunette | - |
| traitement | Antiglare (Haze 42%) |
| luminosité | 350 cd/m² (Typ.) |
| Rapport de contraste | 1000:1 (Typ.) (TM) |
| direction de la vue | Symmetry |
| Temps de réponse | 25 (Typ.)(Tr+Td) |
| angle de vue | 80/80/80/80 (Typ.)(CR≥10) |
| mode de fonctionnement | VA, Normally Black, Transmissive |
| couleur de soutien | 16.7M 100% sRGB |
| Source de lumière | WLED , 10K hours , With LED Driver |
| style de formulaire | Slim (PCBA Flat, T≤3.2mm) |
| conçu pour | Laptop |
| fréquence d'images | 60Hz |
| Ecran tactile | Without |
| type d'interface | eDP (4 Lanes) , eDP1.3 , HBR1 (2.7G/lane) , 40 pins Connector |
| source de courant | 3.3V (Typ.) |
| environnement | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| CLAA133UA01 | CPT | 13.3 | 1600×900 |
| LP133WH1-TLA3 | LG Display | 13.3 | 1366×768 |
| LQ133K1LA04 | SHARP | 13.3 | 1280×800 |
| LQ133K1LA4A | SHARP | 13.3 | 1280×800 |
| LQ133K1LD4B | SHARP | 13.3 | 1280×800 |
| LQ133M1JW03 | SHARP | 13.3 | 1920×1080 |
| LQ133T1JW01 | SHARP | 13.3 | 2560×1440 |
| LQ133T1JW02 | SHARP | 13.3 | 2560×1440 |
| LQ133T1JW19 | SHARP | 13.3 | 2560×1440 |
| LSN133DL02-A02 | Samsung | 13.3 | 2560×1600 |
