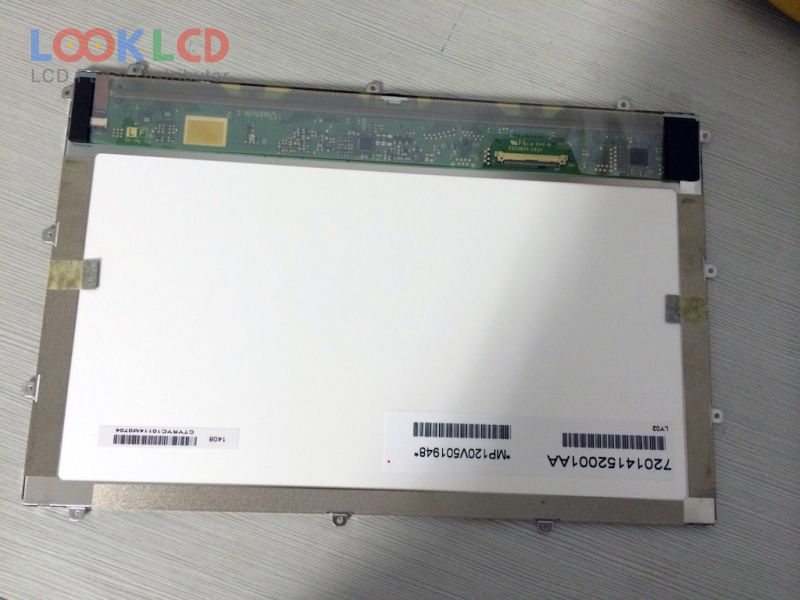

| Numéro d'article | LQ101K1LY02 |
| Marque | SHARP |
| Taille | 10.1 |
| application | PAD |
| Résolution | 1280×800 |
| Composition | LCM |
| Luminosité | 400 |
| CR | 800:1 |
| Couleurs | 16.7M |
| Rétroéclairage | WLED |
| Interface | LVDS |
| marque de panneau | SHARP |
| modèle de panneau | LQ101K1LY02 |
| type de panneau | a-Si TFT-LCD , LCM |
| taille du panneau | 10.1 inch |
| résolution | 1280(RGB)×800 , WXGA |
| mode d'affichage | ASV, Normally Black, Transmissive |
| zone active | 216.96×135.6 mm |
| contour | 238.12×156.48×6 mm |
| surface | Glare (Haze 0%), Antireflection |
| luminosité | 400 cd/m² (Typ.) |
| Rapport de contraste | 800:1 (Typ.) |
| couleurs d'affichage | 16.7M (8-bit) |
| Temps de réponse | 25 (Typ.)(Tr+Td) |
| angle de vue | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| fréquence | 60Hz |
| type de lampe | 7S6PWLEDWithout Driver |
| interface de signaux | LVDS (1 ch, 8-bit), 40 pins |
| tension d'entrée | 3.3V (Typ.) |
