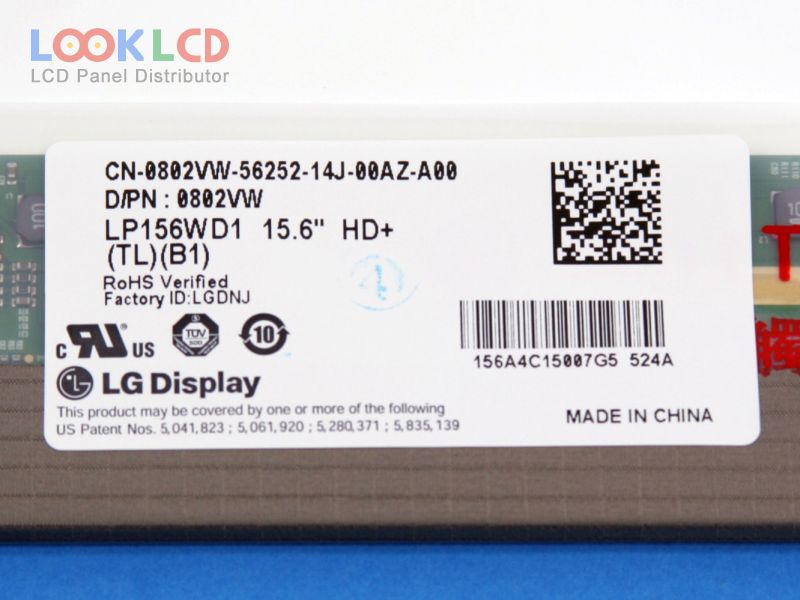

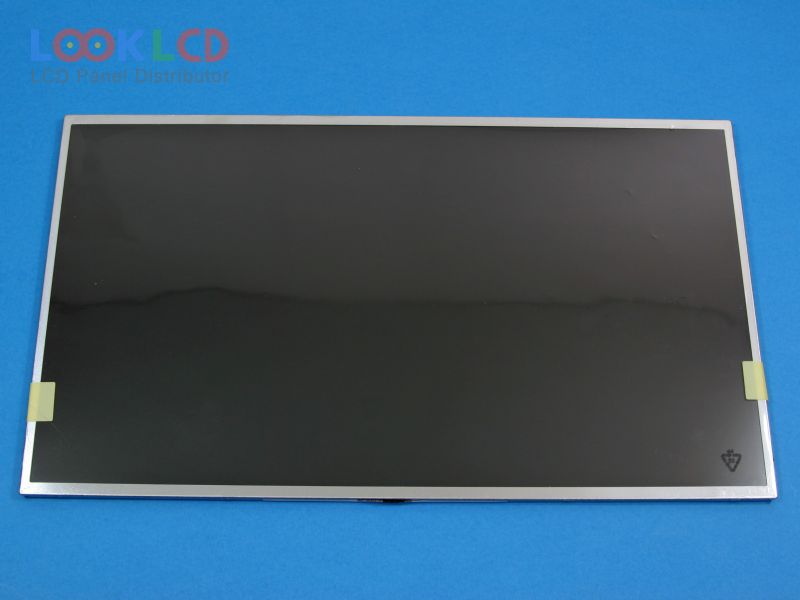

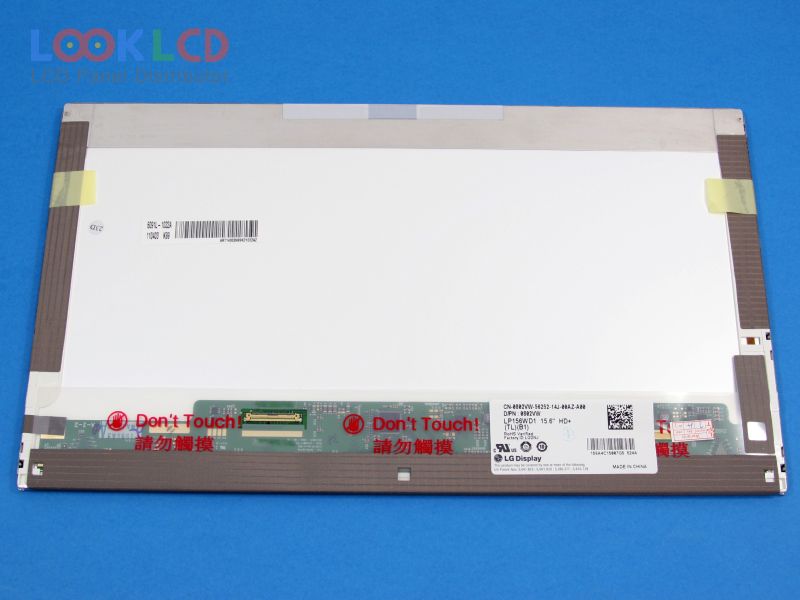

| Numéro d'article | LP156WD1-TLB1 |
| Marque | LG Display |
| Taille | 15.6 |
| application | NBPC |
| Résolution | 1600×900 |
| Composition | LCM |
| Luminosité | 250 |
| CR | 500:1 |
| Couleurs | 262K |
| Rétroéclairage | WLED |
| Interface | LVDS |
| marque de panneau | LG Display |
| modèle de panneau | LP156WD1-TLB1 10 Compatible model |
| type de panneau | a-Si TFT-LCD , LCM |
| taille du panneau | 15.6 inch |
| résolution | 1600(RGB)×900 , HD+ |
| mode d'affichage | TN, Normally White, Transmissive |
| zone active | 344.16×193.59 mm |
| contour | 359.3×209.5×5.7 mm |
| style de forme | Wedge (PCBA Bent, Depth ≥5.2mm) |
| surface | Antiglare, Hard coating (3H) |
| luminosité | 250 cd/m² (Typ.) |
| Rapport de contraste | 500:1 (Min.) |
| couleurs d'affichage | 262K (6-bit), CIE193160% |
| Temps de réponse | 8 (Typ.)(Tr+Td) |
| angle de vue | 60/60/50/50 (Min.)(CR≥10)(L/R/U/D) |
| fréquence | 60Hz |
| type de lampe | WLEDEmbedded (LED Driver) |
| interface de signaux | LVDS (2 ch, 6-bit), 40 pins |
| tension d'entrée | 3.3V (Typ.) |
