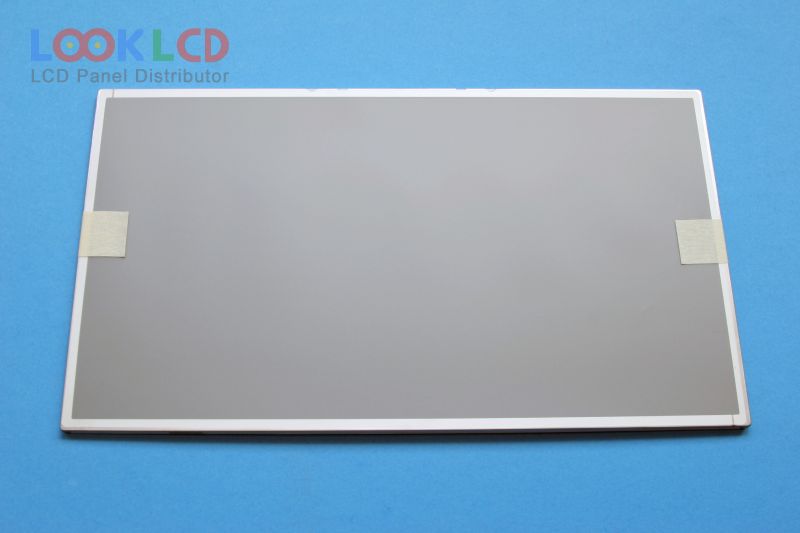

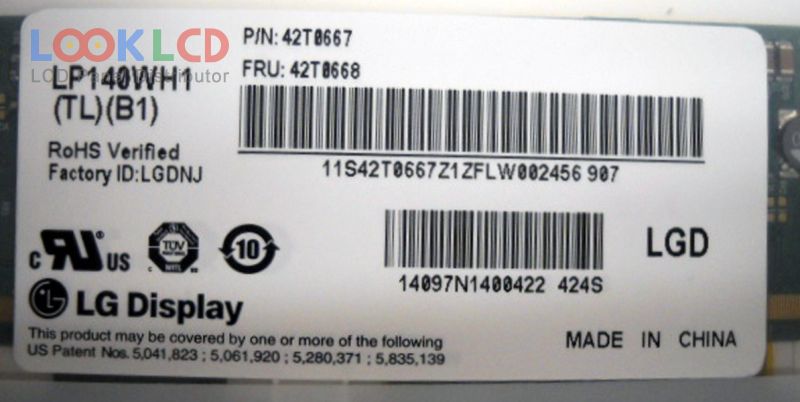

| Numéro d'article | LP140WH1-TLB1 |
| Marque | LG Display |
| Taille | 14.0 |
| application | NBPC |
| Résolution | 1366×768 |
| Composition | LCM |
| Luminosité | 220 |
| CR | |
| Couleurs | 262K |
| Rétroéclairage | WLED |
| Interface | LVDS |
| marque de panneau | LG Display |
| modèle de panneau | LP140WH1-TLB1 |
| type de panneau | a-Si TFT-LCD , LCM |
| taille du panneau | 14.0 inch |
| résolution | 1366(RGB)×768 , WXGA |
| mode d'affichage | TN, Normally White, Transmissive |
| zone active | 309.399×173.952 mm |
| contour | 323.5×192×5.2 mm |
| style de forme | Wedge (PCBA Bent, Depth ≥5.2mm) |
| surface | Antiglare, Hard coating (3H) |
| luminosité | 220 cd/m² (Typ.) |
| Rapport de contraste | |
| couleurs d'affichage | 262K (6-bit), CIE193160% |
| Temps de réponse | |
| angle de vue | |
| fréquence | 60Hz |
| type de lampe | WLEDEmbedded (LED Driver) |
| interface de signaux | LVDS (1 ch, 6-bit), 40 pins |
| tension d'entrée | 3.3V (Typ.) |
