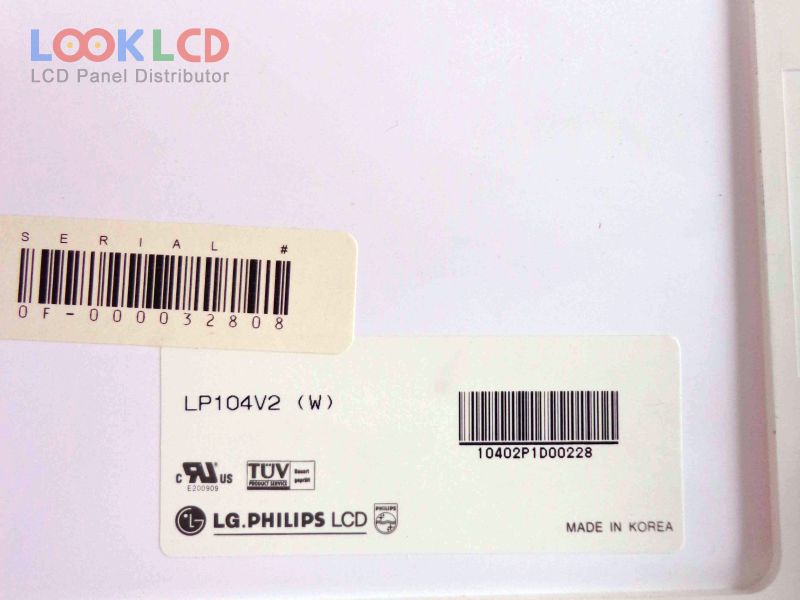

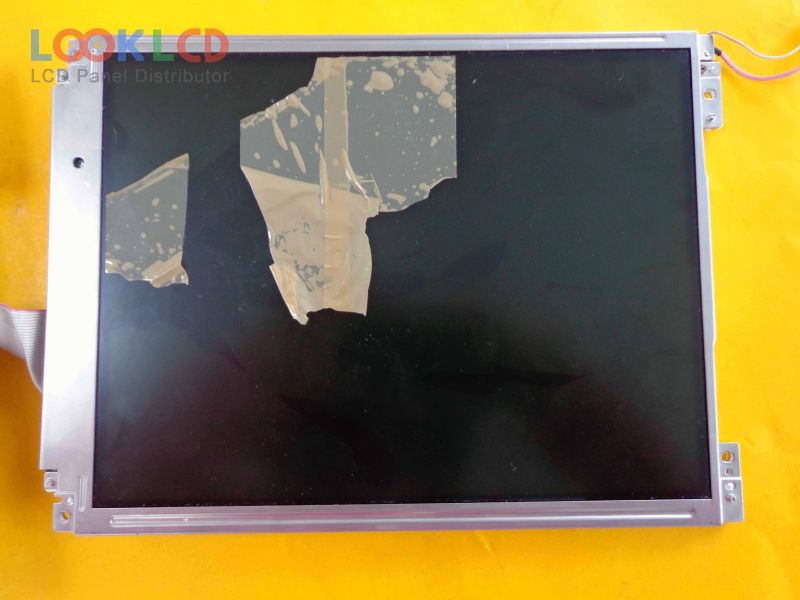

| Numéro d'article | LP104V2-W |
| Marque | LG Display |
| Taille | 10.4 |
| application | NBPC |
| Résolution | 640×480 |
| Composition | LCM |
| Luminosité | 200 |
| CR | 150:1 |
| Couleurs | 262K |
| Rétroéclairage | CCFL |
| Interface | TTL |
| marque de panneau | LG.Philips LCD |
| modèle de panneau | LP104V2-W |
| type de panneau | a-Si TFT-LCD , LCM |
| taille du panneau | 10.4 inch |
| résolution | 640(RGB)×480 , VGA |
| mode d'affichage | TN, Normally White, Transmissive |
| zone active | 211.2×158.4 mm |
| contour | 246.5×179.4 mm |
| surface | Antiglare, Hard coating (3H) |
| luminosité | 200 cd/m² (Typ.) |
| Rapport de contraste | 150:1 (Typ.) |
| couleurs d'affichage | 262K (6-bit) |
| Temps de réponse | 30/50 (Typ.)(Tr/Td) |
| angle de vue | 70/70/45/50 (Typ.)(CR≥10)(L/R/U/D) |
| fréquence | 60Hz |
| type de lampe | 1 pcsCCFLWithout Driver |
| interface de signaux | TTL (1 ch, 6-bit), 31 pins |
| tension d'entrée | 3.3V (Typ.)(VDD) |
