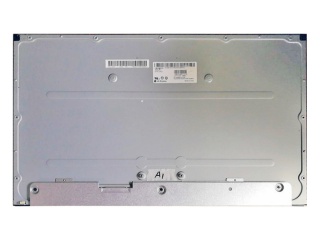

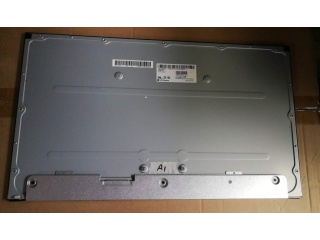

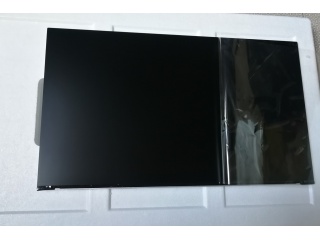

| Numéro d'article | LM230WF9-SSA1 |
| Marque | LG Display |
| Taille | 23.0 |
| application | Desktop Monitor |
| Résolution | 1920×1080 |
| Composition | a-Si TFT-LCD, LCM |
| Luminosité | |
| CR | 1000:1 |
| Couleurs | 16.7M |
| Rétroéclairage | WLED |
| Interface | |
| marque | LG Display |
| modèle | LM230WF9-SSA1 |
| taille diagonale | 23.0 inch |
| taper | a-Si TFT-LCD, LCM |
| format pixel | 1920(RGB)×1080 [FHD] 95PPI |
| configuration | RGB Vertical Stripe |
| zone active | 509.184(H)×286.416(V) mm |
| contour sombre. | 516.984(H)×302.708(V) ×14.2(D) mm |
| zone de lunette | - |
| traitement | Antiglare (Haze 25%), Hard coating (3H) |
| luminosité | 250 cd/m² (Typ.) |
| Rapport de contraste | 1000:1 (Typ.) (TM) |
| direction de la vue | Symmetry |
| Temps de réponse | 14 (Typ.)(G to G) |
| angle de vue | 89/89/89/89 (Typ.)(CR≥10) |
| mode de fonctionnement | IPS, Normally Black, Transmissive |
| couleur de soutien | 16.7M 72% NTSC |
| Source de lumière | WLED [14S4P] , 30K hours , W/O Driver |
| lester | 1.79/1.88Kgs (Typ./Max.) |
| conçu pour | Desktop Monitor |
| fréquence d'images | 60Hz |
| Ecran tactile | Without |
| Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
