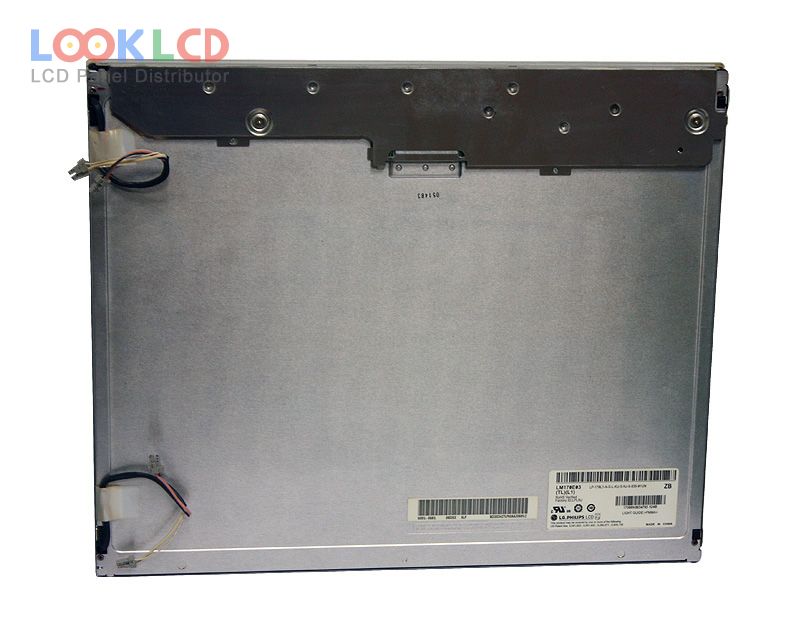

| Numéro d'article | LM170E03-TLB1 |
| Marque | LG Display |
| Taille | 17.0 |
| application | DMPC |
| Résolution | 1280×1024 |
| Composition | LCM |
| Luminosité | 300 |
| CR | 800:1 |
| Couleurs | 16.7M |
| Rétroéclairage | CCFL |
| Interface | LVDS |
| marque de panneau | LG.Philips LCD |
| modèle de panneau | LM170E03-TLB1 2 Compatible model |
| type de panneau | a-Si TFT-LCD , LCM |
| taille du panneau | 17.0 inch |
| résolution | 1280(RGB)×1024 , SXGA |
| mode d'affichage | TN, Normally White, Transmissive |
| zone active | 337.92×270.336 mm |
| contour | 358.5×296.5×17.5 mm |
| surface | Antiglare, Hard coating (3H) |
| luminosité | 300 cd/m² (Typ.) |
| Rapport de contraste | 800:1 (Typ.) |
| couleurs d'affichage | 16.7M (6-bit + Hi-FRC) |
| Temps de réponse | 1.3/3.7 (Typ.)(Tr/Td) |
| angle de vue | 80/80/75/85 (Typ.)(CR≥10)(L/R/U/D) |
| fréquence | 60Hz |
| type de lampe | 4 pcsCCFLWithout Driver |
| interface de signaux | LVDS (2 ch, 8-bit), 30 pins |
| tension d'entrée | 5.0V (Typ.) |
| LM170E01-A4 | LG Display | 17.0 | 1280×1024 |
| LM170E01-A6 | LG Display | 17.0 | 1280×1024 |
| LM170E01-TLA1 | LG Display | 17.0 | 1280×1024 |
| LM170E01-TLB3 | LG Display | 17.0 | 1280×1024 |
| LM170E01-TLBF | LG Display | 17.0 | 1280×1024 |
| LM170E03-TLB1 | LG Display | 17.0 | 1280×1024 |
| LM170E03-TLG1 | LG Display | 17.0 | 1280×1024 |
| LM170E03-TLJ2 | LG Display | 17.0 | 1280×1024 |
| LM170E03-TLL1 | LG Display | 17.0 | 1280×1024 |
| LM170E03-TLL2 | LG Display | 17.0 | 1280×1024 |
| HT190WG1-100 | BOE | 19.0 | 1440×900 |
| LM201U02-A3C3 | LG Display | 20.1 | 1600×1200 |
| LM201W01-B6K1 | LG Display | 20.1 | 1680×1050 |
| LM250WF2-TLA1 | LG Display | 25.0 | 1920×1080 |
| LM270WQ1-SDE3 | LG Display | 27.0 | 2560×1440 |
| M150XN07 V1 | AUO | 15.0 | 1024×768 |
| M185BGE-L23 | Innolux | 18.5 | 1366×768 |
| M185BGE-L2U | Innolux | 18.5 | 1366×768 |
| MT220WW01 V.5 | Innolux | 22.0 | 1680×1050 |
| TMS190WX1-08TC | Tianma | 19.0 | 1440×900 |
