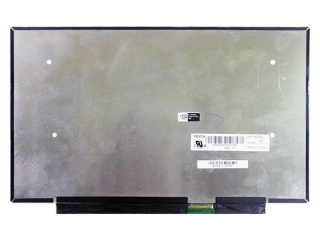

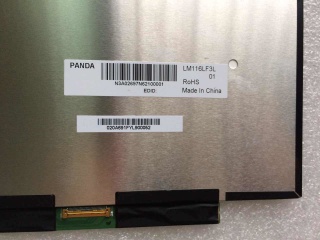

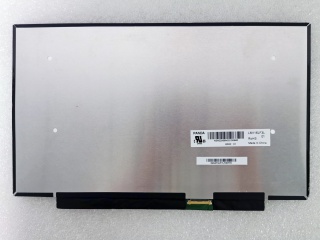

| Numéro d'article | LM116LF3L01 |
| Marque | PANDA |
| Taille | 11.6 |
| application | Pad & Tablet |
| Résolution | 1920×1080 |
| Composition | Oxide TFT-LCD , LCM |
| Luminosité | |
| CR | 1000:1 |
| Couleurs | 16.7M |
| Rétroéclairage | WLED |
| Interface | eDP |
| marque | PANDA |
| taille diagonale | 11.6 inch |
| format pixel | 1920(RGB)×1080 [FHD] 190PPI |
| zone active | 256.32(H)×144.18(V) mm |
| zone de lunette | - |
| luminosité | 300 cd/m² (Typ.) |
| direction de la vue | Symmetry |
| angle de vue | 89/89/89/89 (Typ.)(CR≥10) |
| couleur de soutien | 16.7M 100% sRGB |
| lester | 215g (Max.) |
| fréquence d'images | 60Hz |
| type d'interface | eDP (2 Lanes) , eDP1.2 , HBR1 (2.7G/lane) , 30 pins Connector |
| source de courant | 3.3V (Typ.) |
| environnement | Operating Temperature: -10 ~ 60 °C ; Storage Temperature: -20 ~ 70 °C |
| modèle | LM116LF3L01 (NCP000A) |
| taper | Oxide TFT-LCD , LCM |
| configuration | RGB Vertical Stripe |
| contour sombre. | 268(H)×168(V) ×3(D) mm |
| traitement | Antiglare, Hard coating (3H) |
| Rapport de contraste | 1000:1 (Typ.) (TM) |
| Temps de réponse | 25 (Typ.)(Tr+Td) |
| mode de fonctionnement | FFS, Normally Black, Transmissive |
| Source de lumière | WLED , 15K hours , With LED Driver |
| conçu pour | Pad & Tablet |
| Ecran tactile | Without |
| B116AW02 V0 | AUO | 11.6 | 1024×600 |
| B116XAN03.1 HW1A | AUO | 11.6 | 1366×768 |
| B116XTB01.0 | AUO | 11.6 | 1366×768 |
| B116XW02 V1 | AUO | 11.6 | 1366×768 |
| B116XW05 V004 | AUO | 11.6 | 1366×768 |
| HN116WX1-203 | BOE | 11.6 | 1366×768 |
| LP116WH4-SLA1 | LG Display | 11.6 | 1366×768 |
| M116NWR1 R0 | IVO | 11.6 | 1366×768 |
| N116B6-L02 | Innolux | 11.6 | 1366×768 |
| N116BGE-L41 | Innolux | 11.6 | 1366×768 |
