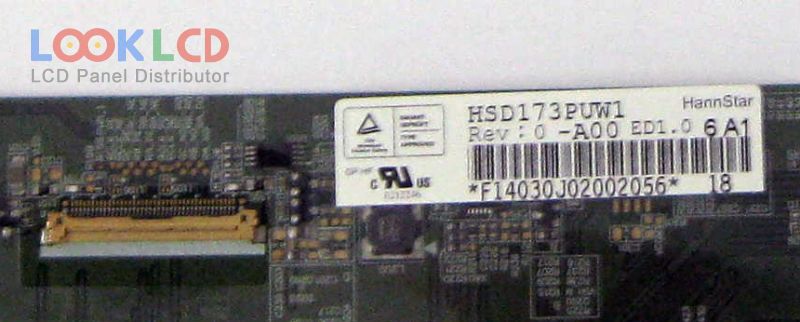

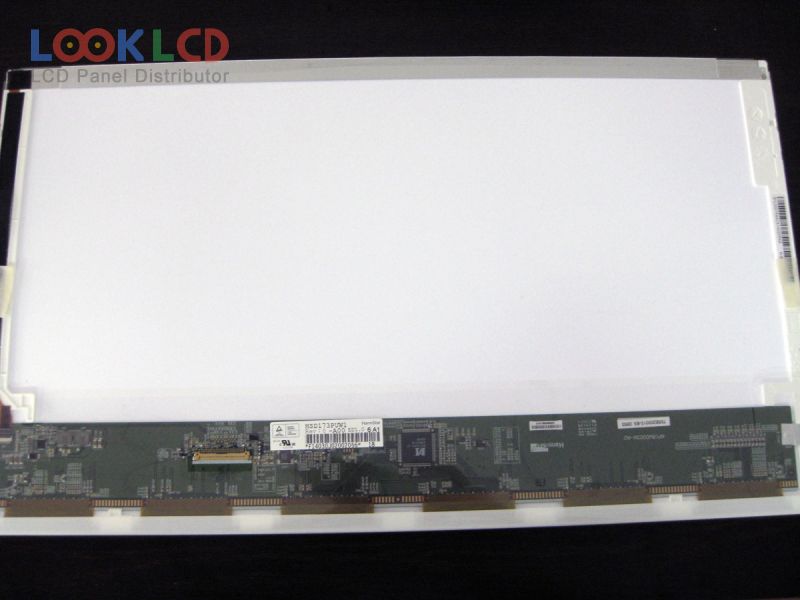

| Numéro d'article | HSD173PUW1-A00 |
| Marque | HannStar |
| Taille | 17.3 |
| application | NBPC |
| Résolution | 1920×1080 |
| Composition | LCM |
| Luminosité | 220 |
| CR | 500:1 |
| Couleurs | 262K |
| Rétroéclairage | WLED |
| Interface | LVDS |
| marque de panneau | HannStar |
| modèle de panneau | HSD173PUW1-A00 2 Compatible model |
| type de panneau | a-Si TFT-LCD , LCM |
| taille du panneau | 17.3 inch |
| résolution | 1920(RGB)×1080 , FHD |
| mode d'affichage | TN, Normally White, Transmissive |
| zone active | 381.888×214.812 mm |
| contour | 398.1×232.8×5.8 mm |
| style de forme | Wedge (PCBA Bent, Depth ≥5.2mm) |
| surface | Glare (Haze 0%), Hard coating (3H) |
| luminosité | 220 cd/m² (Typ.) |
| Rapport de contraste | 500:1 (Typ.) |
| couleurs d'affichage | 262K (6-bit), CIE193160% |
| Temps de réponse | 2.4/5.6 (Typ.)(Tr/Td) |
| angle de vue | 80/80/60/75 (Typ.)(CR≥10)(L/R/U/D) |
| fréquence | 60Hz |
| type de lampe | WLEDEmbedded (LED Driver) |
| interface de signaux | LVDS (2 ch, 6-bit), 40 pins |
| tension d'entrée | 3.3V (Typ.) |
| B173HAN01.0 | AUO | 17.3 | 1920×1080 |
| B173HTN01.1 | AUO | 17.3 | 1920×1080 |
| HSD173PUW1-A | HannStar | 17.3 | 1920×1080 |
| HSD173PUW1-A00 | HannStar | 17.3 | 1920×1080 |
| HSD173PUW1-A01 | HannStar | 17.3 | 1920×1080 |
| LP173WD1-TLG2 | LG Display | 17.3 | 1600×900 |
| LP173WF4-SPD1 | LG Display | 17.3 | 1920×1080 |
| LTN173HT02-D02 | Samsung | 17.3 | 1920×1080 |
| LTN173KT02-W01 | Samsung | 17.3 | 1600×900 |
| BT140GW02 V.9 | Innolux | 14.0 | 1366×768 |
| FLC31SVC6S-17 | Fujitsu | 12.1 | 800×600 |
| HSD110PHW1-A00 | HannStar | 11.0 | 1366×768 |
| LP104V2 | LG Display | 10.4 | 640×480 |
| LP140WH2-TLEA | LG Display | 14.0 | 1366×768 |
| LP140WH6-TJA1 | LG Display | 14.0 | 1366×768 |
| LP156WH4-TLB1 | LG Display | 15.6 | 1366×768 |
| LQ106K1LA01C | SHARP | 10.6 | 1280×768 |
| LTN154P1-L01 | Samsung | 15.4 | 1680×1050 |
| LTN156AT35-W01 | Samsung | 15.6 | 1366×768 |
