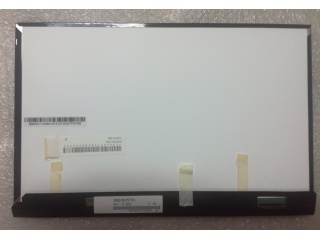

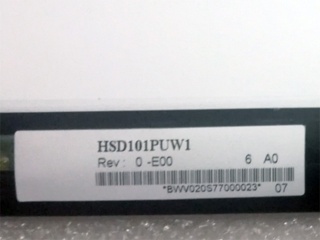

| Numéro d'article | HSD101PUW1-E00 |
| Marque | HannStar |
| Taille | 10.1 |
| application | Pad & Tablet |
| Résolution | 1920×1200 |
| Composition | a-Si TFT-LCD , LCM |
| Luminosité | |
| CR | 1000:1 |
| Couleurs | 16.7M |
| Rétroéclairage | WLED |
| Interface | MIPI |
| marque | HannStar |
| taille diagonale | 10.1 inch |
| format pixel | 1920(RGB)×1200 [WUXGA] 225PPI |
| zone active | 216.576(H)×135.36(V) mm |
| luminosité | - |
| direction de la vue | Symmetry |
| angle de vue | 89/89/89/89 (Typ.)(CR≥10) |
| couleur de soutien | 16.7M 50% NTSC |
| lester | - |
| fréquence d'images | 60Hz |
| type d'interface | MIPI (4 data lanes) , 39 pins Connector |
| source de courant | 3.3V (Typ.) |
| environnement | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| modèle | HSD101PUW1-E00 |
| taper | a-Si TFT-LCD , LCM |
| configuration | RGB Vertical Stripe |
| contour sombre. | - |
| Rapport de contraste | 1000:1 (Typ.) (TM) |
| Temps de réponse | 25 (Typ.)(Tr+Td) |
| mode de fonctionnement | IPS Pro, Normally Black, Transmissive |
| Source de lumière | WLED , 10K hours |
| conçu pour | Pad & Tablet |
| Ecran tactile | Without |
| HSD101PFW2-B00 | HannStar | 10.1 | 1024×600 |
| HSD101PFW2-C00 | HannStar | 10.1 | 1024×600 |
| HSD101PFW3-A00 | HannStar | 10.1 | 1024×600 |
| HSD101PFW4-B01 | HannStar | 10.1 | 1024×600 |
| HSD101PUW1-A00 | HannStar | 10.1 | 1920×1200 |
| HSD101PWW1-A00 Rev.4 | HannStar | 10.1 | 1280×800 |
| HSD101PWW1-B00 | HannStar | 10.1 | 1280×800 |
| HSD101PWW1-F01 | HannStar | 10.1 | 1280×800 |
| HSD101PWW1-G10 | HannStar | 10.1 | 1280×800 |
| HSD101PWW2-A01 | HannStar | 10.1 | 1280×800 |
