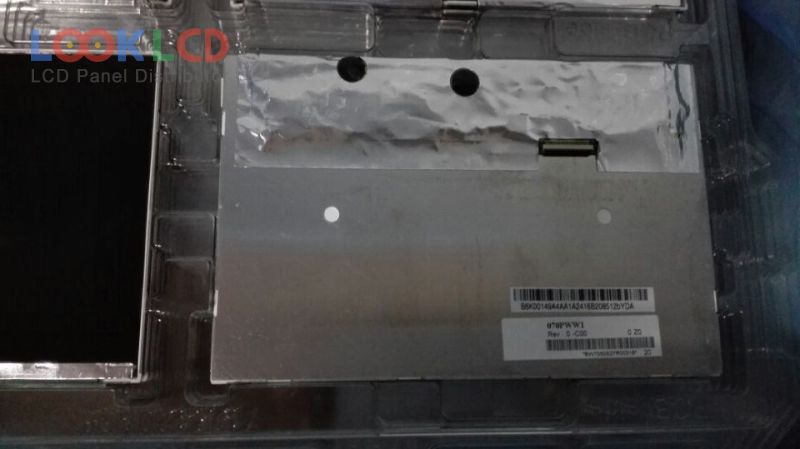

| Numéro d'article | HSD070PWW1-C00 |
| Marque | HannStar |
| Taille | 7.0 |
| application | UMPC |
| Résolution | 1280×800 |
| Composition | LCM |
| Luminosité | 690 |
| CR | 800:1 |
| Couleurs | 262K |
| Rétroéclairage | WLED |
| Interface | LVDS |
| marque de panneau | HannStar |
| modèle de panneau | HSD070PWW1-C00 |
| type de panneau | a-Si TFT-LCD , LCM |
| taille du panneau | 7.0 inch |
| résolution | 1280(RGB)×800 , WXGA |
| mode d'affichage | HS-IPS, Normally Black, Transmissive |
| zone active | 150.72×94.2 mm |
| contour | 161.6×105.8×4.85 mm |
| surface | Hard coating |
| luminosité | 690 cd/m² (Typ.) |
| Rapport de contraste | 800:1 (Typ.) |
| couleurs d'affichage | 262K (6-bit), CIE193150% |
| Temps de réponse | 25 (Typ.)(Tr+Td) |
| angle de vue | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| fréquence | 60Hz |
| type de lampe | WLEDEmbedded (LED Driver) |
| interface de signaux | LVDS (1 ch, 6-bit), 30 pins |
| tension d'entrée | 3.3V (Typ.) |
