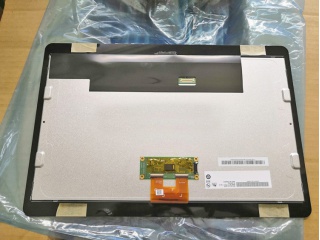

| Numéro d'article | G156XTT03.0 |
| Marque | AUO |
| Taille | 15.6 |
| application | Industrial |
| Résolution | 1366×768 |
| Composition | a-Si TFT-LCD, LCM |
| Luminosité | |
| CR | 500:1 |
| Couleurs | 16.2M |
| Rétroéclairage | WLED |
| Interface | LVDS |
| marque | AUO |
| modèle | G156XTT03.0 |
| taille diagonale | 15.6 inch |
| taper | a-Si TFT-LCD, LCM |
| format pixel | 1366(RGB)×768 [WXGA] 100PPI |
| configuration | RGB Vertical Stripe |
| zone active | 344.232(H)×193.536(V) mm |
| contour sombre. | - |
| zone de lunette | - |
| traitement | Hard coating (7H) |
| luminosité | - |
| Rapport de contraste | 500:1 (Typ.) (TM) |
| direction de la vue | - |
| Temps de réponse | 6/2 (Typ.)(Tr/Td); 8 (Typ.)(G to G) |
| angle de vue | 85/85/80/80 (Typ.)(CR≥10) |
| mode de fonctionnement | TN, Normally White, Transmissive |
| couleur de soutien | 16.2M |
| Source de lumière | WLED , 50K hours , With LED Driver |
| lester | - |
| conçu pour | Industrial |
| fréquence d'images | 60Hz |
| Ecran tactile | PCAP |
| type d'interface | LVDS (1 ch, 8-bit) , 30 pins Connector |
| source de courant | 5.0V (Typ.) |
| B156XTN04.1 | AUO | 15.6 | 1366×768 |
| G156XW01 V0 | AUO | 15.6 | 1366×768 |
| G156XW01 V1 | AUO | 15.6 | 1366×768 |
| G156XW01 V3 | AUO | 15.6 | 1366×768 |
| LP156WF7-SPB2 | LG Display | 15.6 | 1920×1080 |
| LP156WHU-TPD1 | LG Display | 15.6 | 1366×768 |
| LP156WHU-TPG1 | LG Display | 15.6 | 1366×768 |
| LTN156AT20-P02 | Samsung | 15.6 | 1366×768 |
| LTN156AT24-B01 | Samsung | 15.6 | 1366×768 |
| N156BGE-LB1 | Innolux | 15.6 | 1366×768 |
