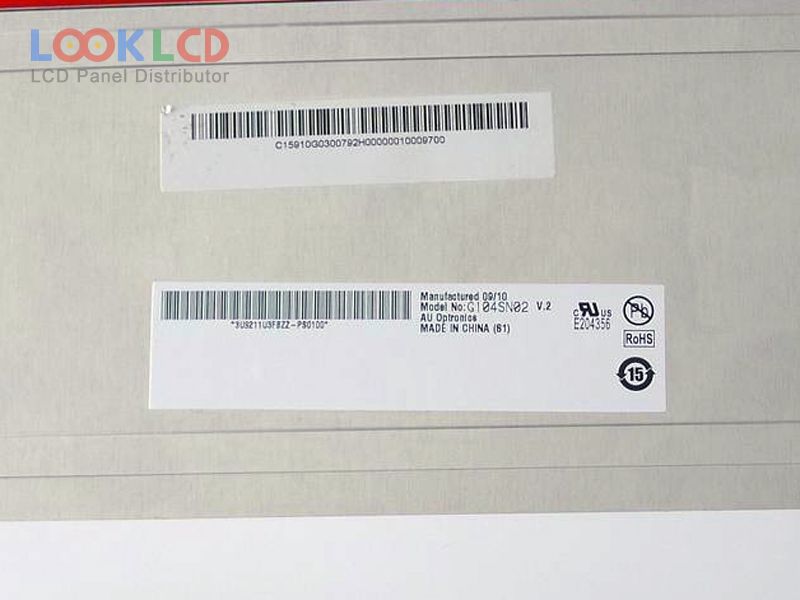

| Numéro d'article | G104SN02 V2 |
| Marque | AUO |
| Taille | 10.4 |
| application | IA |
| Résolution | 800×600 |
| Composition | LCM |
| Luminosité | 400 |
| CR | 700:1 |
| Couleurs | 262K/16.2M |
| Rétroéclairage | WLED |
| Interface | LVDS |
| marque de panneau | AUO |
| modèle de panneau | G104SN02 V2 |
| type de panneau | a-Si TFT-LCD , LCM |
| taille du panneau | 10.4 inch |
| résolution | 800(RGB)×600 , SVGA |
| mode d'affichage | TN, Normally White, Transmissive |
| zone active | 211.2×158.4 mm |
| contour | 243×184×8.5 mm |
| surface | Antiglare, Hard coating (3H) |
| luminosité | 400 cd/m² (Typ.) |
| Rapport de contraste | 700:1 (Typ.) |
| couleurs d'affichage | 262K/16.2M (6-bit / 6-bit + FRC), CIE193145% |
| Temps de réponse | 20/10 (Typ.)(Tr/Td) |
| angle de vue | 80/80/60/80 (Typ.)(CR≥10)(L/R/U/D) |
| fréquence | 60Hz |
| type de lampe | 7S2PWLEDEmbedded (LED Driver) |
| interface de signaux | LVDS (1 ch, 6/8-bit), 20 pins |
| tension d'entrée | 3.3V (Typ.) |
