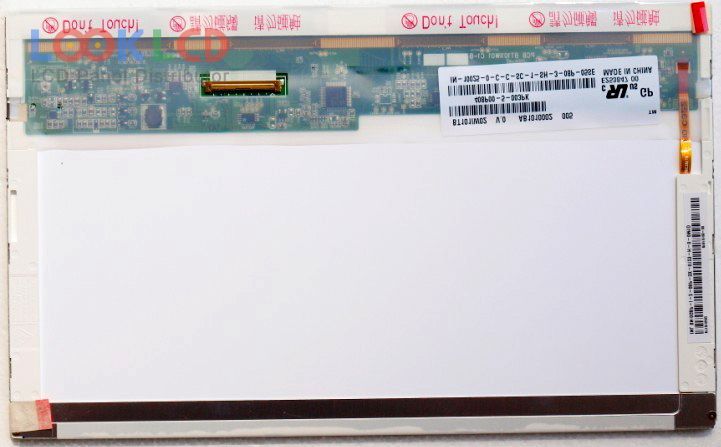

| Numéro d'article | BT101IW02 V.0 |
| Marque | Innolux |
| Taille | 10.1 |
| application | NOPC |
| Résolution | 1024×600 |
| Composition | LCM |
| Luminosité | 180 |
| CR | 500:1 |
| Couleurs | 262K |
| Rétroéclairage | WLED |
| Interface | LVDS |
| marque de panneau | INNOLUX |
| modèle de panneau | BT101IW02 V.0 13 Compatible model |
| type de panneau | a-Si TFT-LCD , LCM |
| taille du panneau | 10.1 inch |
| résolution | 1024(RGB)×600 , WSVGA |
| mode d'affichage | TN, Normally White, Transmissive |
| zone active | 222.72×125.28 mm |
| contour | 235×143×5.2 mm |
| style de forme | Wedge (PCBA Bent, Depth ≥5.2mm) |
| surface | Glare (Haze 0%) |
| luminosité | 180 cd/m² (Typ.) |
| Rapport de contraste | 500:1 (Typ.) |
| couleurs d'affichage | 262K (6-bit), CIE193145% |
| Temps de réponse | 8 (Typ.)(Tr+Td) |
| angle de vue | 40/40/15/30 (Min.)(CR≥10)(L/R/U/D) |
| fréquence | 60Hz |
| type de lampe | 9S3PWLEDEmbedded (LED Driver) |
| interface de signaux | LVDS (1 ch, 6-bit), 40 pins |
| tension d'entrée | 3.3V (Typ.) |
