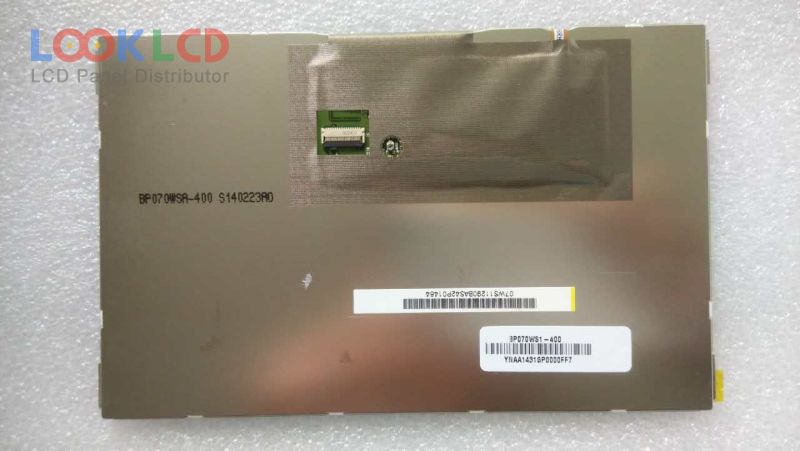

| Numéro d'article | BP070WS1-400 |
| Marque | BOE |
| Taille | 7.0 |
| application | PAD |
| Résolution | 1024×600 |
| Composition | LCM |
| Luminosité | 350 |
| CR | 900:1 |
| Couleurs | 16.7M |
| Rétroéclairage | WLED |
| Interface | MIPI |
| marque de panneau | BOE |
| modèle de panneau | BP070WS1-400 |
| type de panneau | a-Si TFT-LCD , LCM |
| taille du panneau | 7.0 inch |
| résolution | 1024(RGB)×600 , WSVGA |
| mode d'affichage | ADS, Normally Black, Transmissive |
| zone active | 153.6×90 mm |
| contour | 162.8×102.9×4.2 mm |
| surface | Glare (Haze 0%), Hard coating (3H) |
| luminosité | 350 cd/m² (Typ.) |
| Rapport de contraste | 900:1 (Typ.) |
| couleurs d'affichage | 16.7M (6-bit + Hi-FRC), CIE193152% |
| Temps de réponse | 30 (Typ.)(Tr+Td) |
| angle de vue | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| fréquence | 60Hz |
| type de lampe | 5S4PWLEDEmbedded (LED Driver) |
| interface de signaux | MIPI (4 data lanes), 31 pins |
| tension d'entrée | 3.7V (Typ.) |
