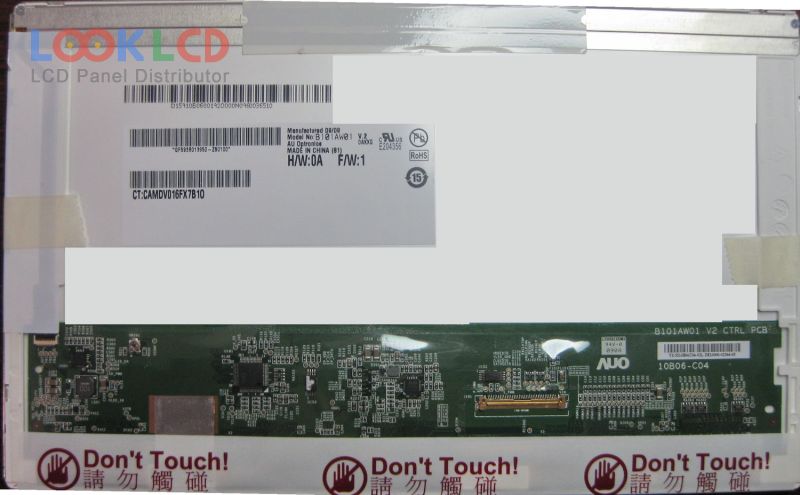

| Numéro d'article | B101AW01 V2 HW0A |
| Marque | AUO |
| Taille | 10.1 |
| application | NOPC |
| Résolution | 1024×576 |
| Composition | LCM |
| Luminosité | 200 |
| CR | 400:1 |
| Couleurs | 262K |
| Rétroéclairage | WLED |
| Interface | LVDS |
| marque de panneau | AUO |
| modèle de panneau | B101AW01 V2 HW0A 5 Compatible model |
| type de panneau | a-Si TFT-LCD , LCM |
| taille du panneau | 10.1 inch |
| résolution | 1024(RGB)×576 , WSVGA |
| mode d'affichage | TN, Normally White, Transmissive |
| zone active | 222.72×125.28 mm |
| contour | 235×143×5.2 mm |
| style de forme | Wedge (PCBA Bent, Depth ≥5.2mm) |
| surface | Antiglare, Hard coating (3H) |
| luminosité | 200 cd/m² (Typ.) |
| Rapport de contraste | 400:1 (Typ.) |
| couleurs d'affichage | 262K (6-bit), CIE193145% |
| Temps de réponse | 8 (Typ.)(Tr+Td) |
| angle de vue | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| fréquence | 60Hz |
| type de lampe | WLEDEmbedded (LED Driver) |
| interface de signaux | LVDS (1 ch, 6-bit), 40 pins |
| tension d'entrée | 3.3V (Typ.) |
| B101AW01 V0 HW5A | AUO | 10.1 | 1024×576 |
| B101AW01 V2 HW0A | AUO | 10.1 | 1024×576 |
| B101AW01 V2 HW5A | AUO | 10.1 | 1024×576 |
| B101EAN01.6 | AUO | 10.1 | 1280×800 |
| BP101WX1-300 | BOE | 10.1 | 1280×800 |
| CLAA101ND07CW | CPT | 10.1 | 1024×600 |
| DLC1010GIG | Other | 10.1 | 1280×800 |
| HJ101IA-01F | Innolux | 10.1 | 1280×800 |
| LP101WH1-TLB5 | LG Display | 10.1 | 1366×768 |
| VVX10F034N00 | Panasonic | 10.1 | 1920×1200 |
| B089AW01 V2 | AUO | 8.9 | 1024×600 |
| B116XW01 V0 | AUO | 11.6 | 1366×768 |
| B116XW05 V0 | AUO | 11.6 | 1366×768 |
| HSD070PFW1-A00 | HannStar | 7.0 | 1024×600 |
| LTN101NT02-B01 | Samsung | 10.1 | 1024×600 |
| M101NWT4 R3 | IVO | 10.1 | 1024×600 |
| N101L6-L0D | Innolux | 10.1 | 1024×600 |
| N101N6-L02 | Innolux | 10.1 | 1024×576 |
| N116BGE-L32 | Innolux | 11.6 | 1366×768 |
| SVA101WV1(01TA)(A) | SVA-NEC | 10.0 | 1024×576 |
