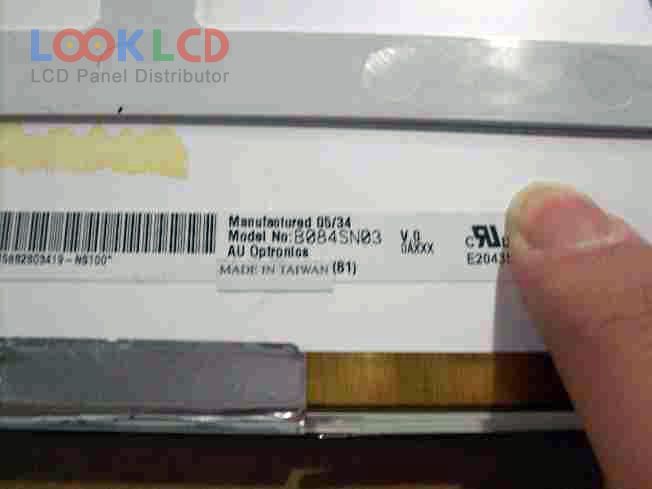

| Numéro d'article | B084SN03 V0 |
| Marque | AUO |
| Taille | 8.4 |
| application | IA |
| Résolution | 800×600 |
| Composition | LCM |
| Luminosité | 220 |
| CR | 350:1 |
| Couleurs | 262K |
| Rétroéclairage | CCFL |
| Interface | LVDS |
| marque de panneau | AU Optronics |
| modèle de panneau | B084SN03 V0 |
| type de panneau | a-Si TFT-LCD , LCM |
| taille du panneau | 8.4 inch |
| résolution | 800(RGB)×600 , SVGA |
| mode d'affichage | TN, Normally White, Transmissive |
| zone active | 170.4×127.8 mm |
| contour | 203×142.5 mm |
| surface | |
| luminosité | 220 cd/m² (Typ.) |
| Rapport de contraste | 350:1 (Typ.) |
| couleurs d'affichage | 262K (6-bit) |
| Temps de réponse | 10/25 (Typ.)(Tr/Td) |
| angle de vue | 60/60/60/40 (Typ.)(CR≥10)(L/R/U/D) |
| type de lampe | 1 pcsCCFLWithout Driver |
| interface de signaux | LVDS (1 ch, 6-bit), 20 pins |
| tension d'entrée | 3.3V (Typ.) |
