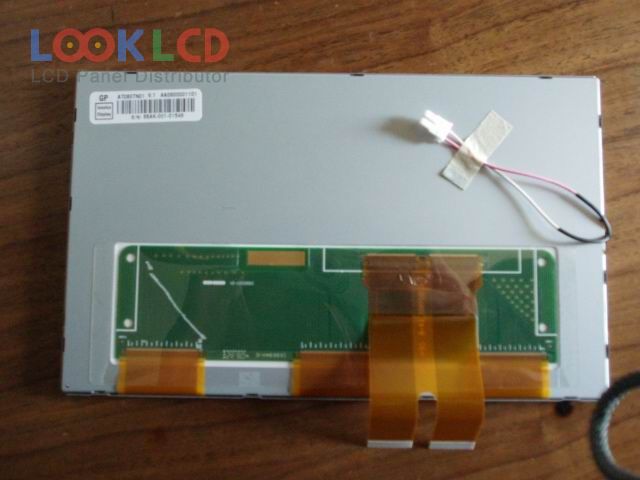

| Numéro d'article | AT080TN01 |
| Marque | Innolux |
| Taille | 8.0 |
| application | DPF |
| Résolution | 800×480 |
| Composition | LCM |
| Luminosité | 350 |
| CR | 300:1 |
| Couleurs | 262K |
| Rétroéclairage | CCFL |
| Interface | TTL |
| marque de panneau | INNOLUX |
| modèle de panneau | AT080TN01 |
| type de panneau | a-Si TFT-LCD , LCM |
| taille du panneau | 8.0 inch |
| résolution | 800(RGB)×480 , WVGA |
| mode d'affichage | TN, Normally White, Transmissive |
| zone active | 176.64×99.36 mm |
| contour | 192.8×116.9×6.7 mm |
| surface | Antiglare |
| luminosité | 350 cd/m² (Typ.) |
| Rapport de contraste | 300:1 (Typ.) |
| couleurs d'affichage | 262K (6-bit) |
| Temps de réponse | 15/20 (Typ.)(Tr/Td) |
| angle de vue | 65/65/45/65 (Typ.)(CR≥10)(L/R/U/D) |
| type de lampe | 1 pcsCCFLWithout Driver |
| interface de signaux | Parallel RGB (1 ch, 6-bit), 60 pins |
| tension d'entrée | 3.3/10.0/15.0/-10.0V (Typ.)(VCC/AVDD/VGH/VGL) |
