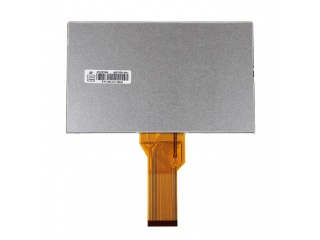

| Numéro d'article | AT070TN04 |
| Marque | Innolux |
| Taille | 7.0 |
| application | Automotive Display |
| Résolution | 480×234 |
| Composition | a-Si TFT-LCD , LCM |
| Luminosité | |
| CR | 300:1 |
| Couleurs | Full |
| Rétroéclairage | CCFL |
| Interface | TFT |
| marque | Innolux |
| taille diagonale | 7.0 inch |
| format pixel | 480(RGB)×234 76PPI |
| zone active | 154.08(H)×86.58(V) mm |
| zone de lunette | - |
| luminosité | 500 cd/m² (Typ.) |
| direction de la vue | 6 o'clock |
| angle de vue | 60/60/40/60 (Typ.)(CR≥10) |
| couleur de soutien | Full color |
| lester | 160g (Typ.) |
| fréquence d'images | 60Hz |
| type d'interface | TFT Specific Analog RGB , 26 pins FPC |
| source de courant | 5.0/5.0/15.0/-10.0V (Typ.)(VCC/AVDD/VGH/VGL) |
| environnement | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 95 °C ; Vibration Level: 2.9G (28.4 m/s²) |
| modèle | AT070TN04 |
| taper | a-Si TFT-LCD , LCM |
| configuration | RGB Vertical Stripe |
| contour sombre. | 164.9(H)×100(V) ×6(D) mm |
| traitement | Antiglare |
| Rapport de contraste | 300:1 (Typ.) (TM) |
| Temps de réponse | 10/20 (Typ.)(Tr/Td) |
| mode de fonctionnement | TN, Normally White, Transmissive |
| Source de lumière | CCFL [1 pcs] , 10K hours , W/O Driver |
| conçu pour | Automotive Display |
| Ecran tactile | Without |
