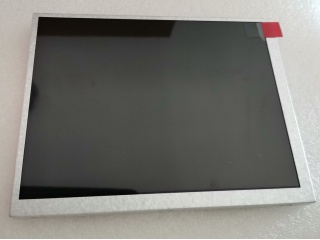

| Numéro d'article | AM-640480G2TNQW-A0H |
| Marque | AMPIRE |
| Taille | 5.7 |
| application | Industrial |
| Résolution | 640×480 |
| Composition | a-Si TFT-LCD, LCM |
| Luminosité | |
| CR | 250:1 |
| Couleurs | 262K |
| Rétroéclairage | WLED |
| Interface | LVDS |
| marque | AMPIRE |
| modèle | AM-640480G2TNQW-A0H |
| taille diagonale | 5.7 inch |
| taper | a-Si TFT-LCD, LCM |
| format pixel | 640(RGB)×480 [VGA] 141PPI |
| configuration | RGB Vertical Stripe |
| zone active | 115.2(H)×86.4(V) mm |
| contour sombre. | 127(H)×98.43(V) ×7.8(D) mm |
| zone de lunette | 118.0(H)×89.2(V) mm |
| traitement | Antiglare, Hard coating (3H) |
| luminosité | 500 cd/m² (Typ.) |
| Rapport de contraste | 250:1 (Typ.) (TM) |
| direction de la vue | 12 o'clock |
| Temps de réponse | 50 (Typ.)(Tr+Td) |
| angle de vue | 70/70/50/50 (Typ.)(CR≥10) |
| mode de fonctionnement | TN, Normally White, Transmissive |
| couleur de soutien | 262K 50% NTSC |

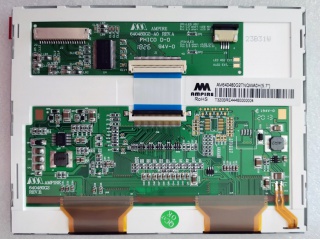

| Source de lumière | WLED , 20K hours , With LED Driver |
| lester | - |
| conçu pour | Industrial |
| fréquence d'images | 60Hz |
| Ecran tactile | Without |
| type d'interface | LVDS (1 ch, 6-bit) , 20 pins Connector |
| source de courant | 3.3V (Typ.) |
| environnement | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
