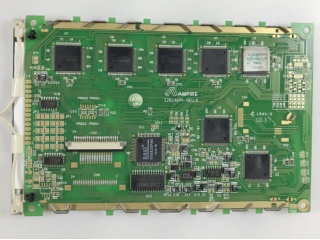

| Numéro d'article | AM-1024768FCTMQW-T00H |
| Marque | AMPIRE |
| Taille | 10.4 |
| application | Industrial |
| Résolution | 1024×768 |
| Composition | a-Si TFT-LCD, LCM |
| Luminosité | |
| CR | 1200:1 |
| Couleurs | 262K/16.2M |
| Rétroéclairage | WLED |
| Interface | LVDS |
| marque | AMPIRE |
| modèle | AM-1024768FCTMQW-T00H |
| taille diagonale | 10.4 inch |
| taper | a-Si TFT-LCD, LCM |
| format pixel | 1024(RGB)×768 [XGA] 123PPI |
| configuration | RGB Vertical Stripe |
| zone active | 210.4(H)×157.8(V) mm |
| contour sombre. | 238.6(H)×175.8(V) mm |
| luminosité | 280 cd/m² (Typ.) |
| Rapport de contraste | 1200:1 (Typ.) (TM) |
| direction de la vue | Symmetry |
| Temps de réponse | 14/11 (Typ.)(Tr/Td) |
| angle de vue | 88/88/88/88 (Typ.)(CR≥10) |
| mode de fonctionnement | Normally Black, Transmissive |
| couleur de soutien | 262K/16.2M 57% NTSC |
| Source de lumière | WLED , 30K hours , With LED Driver |
| lester | - |
| conçu pour | Industrial |
| fréquence d'images | 60Hz |
| Ecran tactile | PCAP |
| type d'interface | LVDS (1 ch, 6/8-bit) , 30 pins Connector |
| source de courant | 3.3V (Typ.) |
| environnement | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
